What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

ICP Run Capacitor for WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today

Name: ICP Run Capacitor for WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today
Brand: ICP
SKU: 1171552
Price: 33.80 USD
Availability: InStock

SKU: 1171552 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

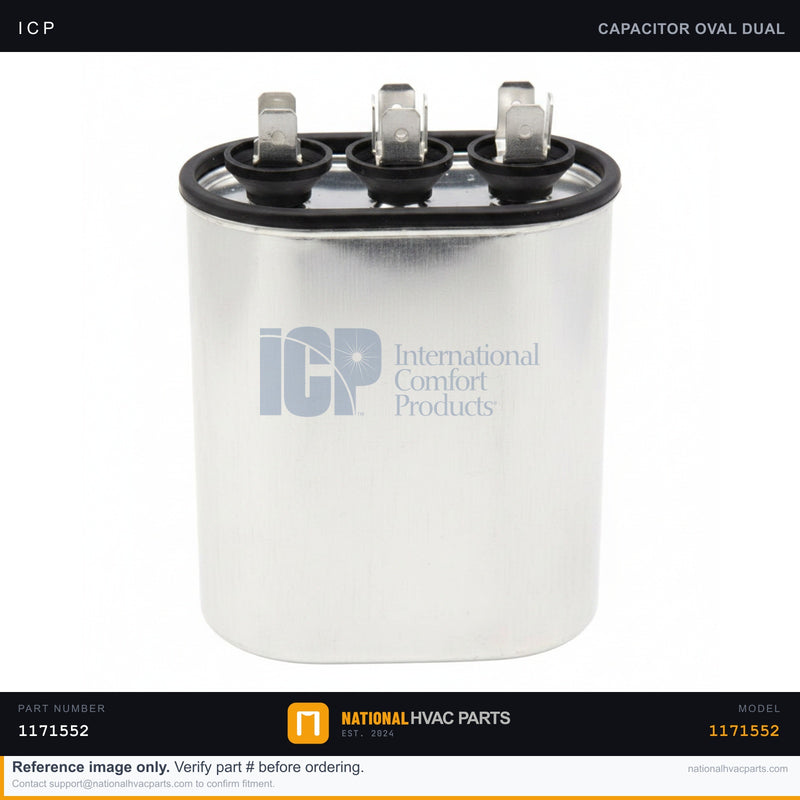

This OEM capacitor assembly for the ICP/Tempstar/Heil WPG3242040RKB1 packaged gas/electric unit includes the original oval run capacitor (clamp-mounted) and the 2.0 MFD round run capacitor (P/N 1171552 and 1095021). Capacitors provide the phase-shifted starting and running torque that the condenser fan motor and compressor need. Rated at 440V, they store and release energy on every cycle, so they are among the most failure-prone components in any air conditioner. A failed capacitor is the single most common cause of a unit that hums but will not start, a fan that spins slowly, or a compressor that trips on overload. Replacing with the exact OEM part restores rated microfarad output and protects your motors from premature burnout.

Specifications

Spec	Value
Part Numbers	1171552 (Oval), 1095021 (Round)
Type	Run Capacitor — Oval & 2.0 MFD Round
Brand	ICP / Tempstar / Heil
Capacitance	2.0 MFD (round)
Voltage Rating	440 VAC
Fits Model	WPG3242040RKB1
Fitment	OEM Direct Replacement

Compatibility

Engineered as a direct-fit replacement for the ICP, Tempstar, Heil, and Comfortmaker WPG3242040RKB1 packaged unit. Always confirm the MFD and voltage rating stamped on your existing capacitor before installation, as some units ship with substitute values.

Installation Guide

Safety First — Disconnect power at the disconnect box and verify zero voltage with a multimeter before touching any terminals.
Access — Remove the electrical service panel from the unit.
Document — Photograph all capacitor wiring before disconnecting anything.
Remove — Discharge the old capacitor across its terminals with an insulated resistor, then unclip the mounting clamp and pull the spade connectors.
Install — Seat the new capacitor in the clamp and reconnect each lead to its matching terminal per your photo.
Test — Restore power and confirm the fan and compressor start smoothly with no hum.

Signs You Need a Replacement

Unit hums but compressor or fan will not start
Condenser fan spins slowly or needs a push to start
Visibly bulging, swollen, or leaking capacitor top
Intermittent cooling or repeated breaker/overload trips

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Run Capacitor for WPG3242040...

$33.80

Frequently Asked Questions

Does this Capacitor fit my ICP WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WPG3242040RKB1 — Oval & 2 MFD Round | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
