What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WFAR080C060C1 — OEM 1176131 with Strap | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WFAR080C060C1 — OEM 1176131 with Strap | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

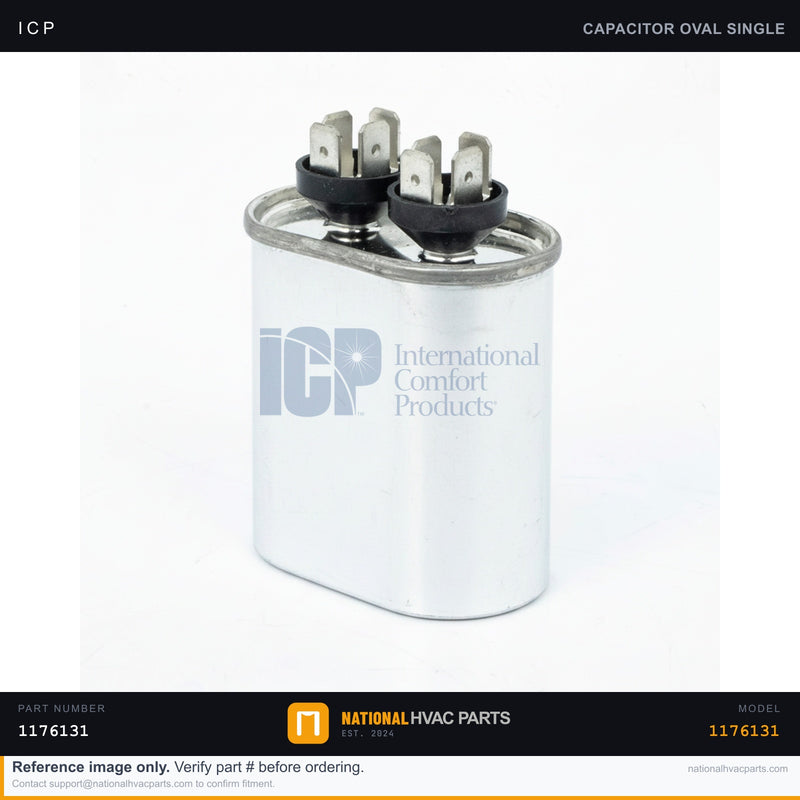

ICP Run Capacitor 25 MFD 370V for WFAR080C060C1 — OEM 1176131 with Strap | Ships Today

Name: ICP Run Capacitor 25 MFD 370V for WFAR080C060C1 — OEM 1176131 with Strap | Ships Today
Brand: ICP
SKU: 1176131
Price: 23.34 USD
Availability: InStock

SKU: 1176131 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM 25 MFD, 370V oval run capacitor (part number 1176131), shipped with its mounting strap (part number 1014315), drives the blower motor on the ICP/Tempstar/Heil WFAR080C060C1 gas furnace. A run capacitor stores and releases energy to keep the motor turning efficiently at the correct phase and torque. As capacitors age they lose capacitance, bulge, or fail outright — leaving the blower humming but not spinning, starting slowly, overheating, or tripping on thermal overload. Measuring well below the rated 25 MFD is a clear sign of failure.

Specifications

Spec	Value
Capacitor Part Number	1176131
Strap Part Number	1014315
Type	Single Run Capacitor, Oval
Brand	ICP / Tempstar / Heil
Capacitance	25 MFD
Voltage Rating	370V
Fitment	OEM direct replacement

Compatibility

Designed for the ICP WFAR080C060C1 furnace and shared across ICP-family blower assemblies (Tempstar, Heil, Comfortmaker, Arcoaire) calling for a 25 MFD 370V oval run capacitor. A 440V-rated capacitor of the same MFD may also be used as an upgrade. Includes the matching oval mounting strap.

Installation Guide

Safety First — Disconnect power at the switch and breaker, then verify zero voltage with a multimeter. Discharge the capacitor across its terminals before handling.
Access — Remove the blower compartment service panel.
Document — Photograph all capacitor wiring before disconnecting.
Remove — Loosen the mounting strap, lift out the old capacitor, and disconnect the leads.
Install — Seat the new capacitor in the strap, mount it, and reconnect wiring per your photo.
Test — Restore power and confirm the blower starts promptly and runs at full speed.

Signs You Need a Replacement

Blower hums but won't start or starts slowly
Bulged, leaking, or burst capacitor top
Measured capacitance well below 25 MFD
Motor overheats or trips on thermal overload

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Run Capacitor 25 MFD 370V fo...

$23.34

Frequently Asked Questions

Does this Capacitor fit my ICP WFAR080C060C1 — OEM 1176131 with Strap | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WFAR080C060C1 — OEM 1176131 with Strap | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WFAR080C060C1 — OEM 1176131 with Strap | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
