What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WPG4244060LKA1 - 2.0 MFD | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG4244060LKA1 - 2.0 MFD | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

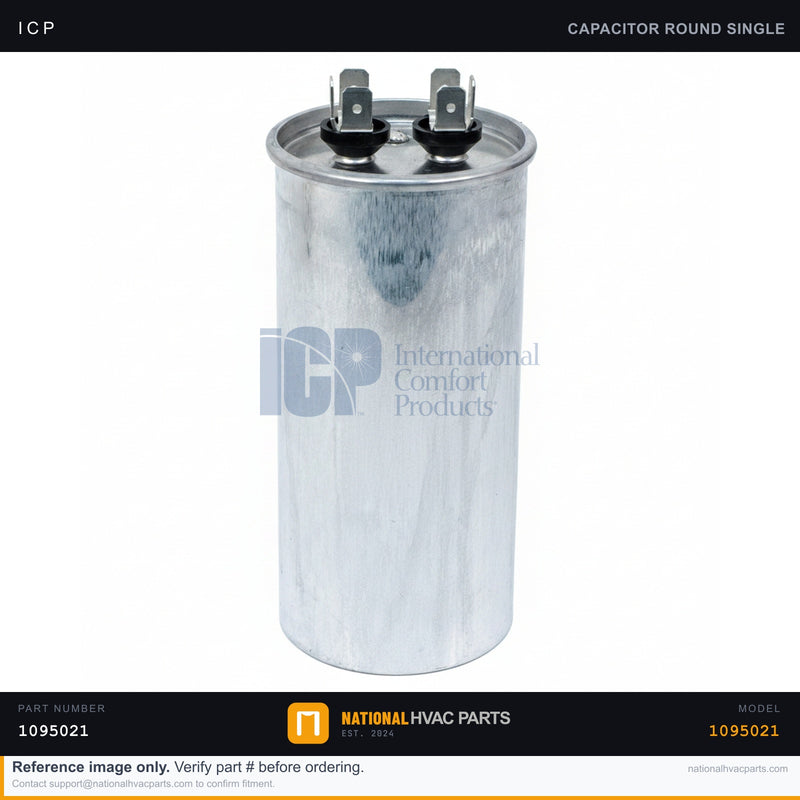

ICP Round Run Capacitor for WPG4244060LKA1 - 2.0 MFD | Ships Today

Name: ICP Round Run Capacitor for WPG4244060LKA1 - 2.0 MFD | Ships Today
Brand: ICP
SKU: 1095021
Price: 19.43 USD
Availability: InStock

SKU: 1095021 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM round run capacitor (part #1095021) is a factory-original component for the ICP/Tempstar/Heil WPG4244060LKA1 gas furnace. A run capacitor stores and delivers an electrical charge that keeps the blower or inducer motor running smoothly and efficiently after start-up. Rated at 2.0 MFD in a compact round clamp-mount housing, it provides the steady phase shift the motor windings need to maintain proper torque and RPM. When a run capacitor weakens or fails, the motor it serves will struggle to start, run hot, hum, or stop entirely - leading to nuisance lockouts and premature motor burnout. Replacing a tired capacitor is one of the most common and least expensive furnace repairs.

Specifications

Spec	Value
Part Number	1095021
Type	Single Run Capacitor, Round
Brand	ICP / Tempstar / Heil
Capacitance	2.0 MFD
Mount	Round, clamp-style
Fitment	OEM

Compatibility

Designed as a direct OEM replacement for the ICP/Tempstar/Heil WPG4244060LKA1 gas furnace. Always confirm the MFD rating and voltage stamped on your existing capacitor before installing.

Installation Guide

Safety First - Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter. Discharge the old capacitor across its terminals with an insulated screwdriver before touching it.
Access - Remove the furnace service panel to expose the control compartment.
Document - Photograph all wire connections before disconnecting anything.
Remove - Loosen the mounting clamp, slide out the old capacitor, and label the wires.
Install - Mount the new capacitor, reconnect each wire per your photo, and secure the clamp.
Test - Restore power and confirm the motor starts cleanly and runs without humming.

Signs You Need a Replacement

Motor hums but will not start or is slow to spin up
Visible bulging, leaking, or a swollen capacitor top
Intermittent operation or repeated motor overheating
Capacitance reads below rated 2.0 MFD on a meter

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Round Run Capacitor for WPG4...

$19.43

Frequently Asked Questions

Does this Capacitor fit my ICP WPG4244060LKA1 - 2.0 MFD | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WPG4244060LKA1 - 2.0 MFD | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WPG4244060LKA1 - 2.0 MFD | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
