What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model YG024GB1 — 370/440V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number YG024GB1 — 370/440V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

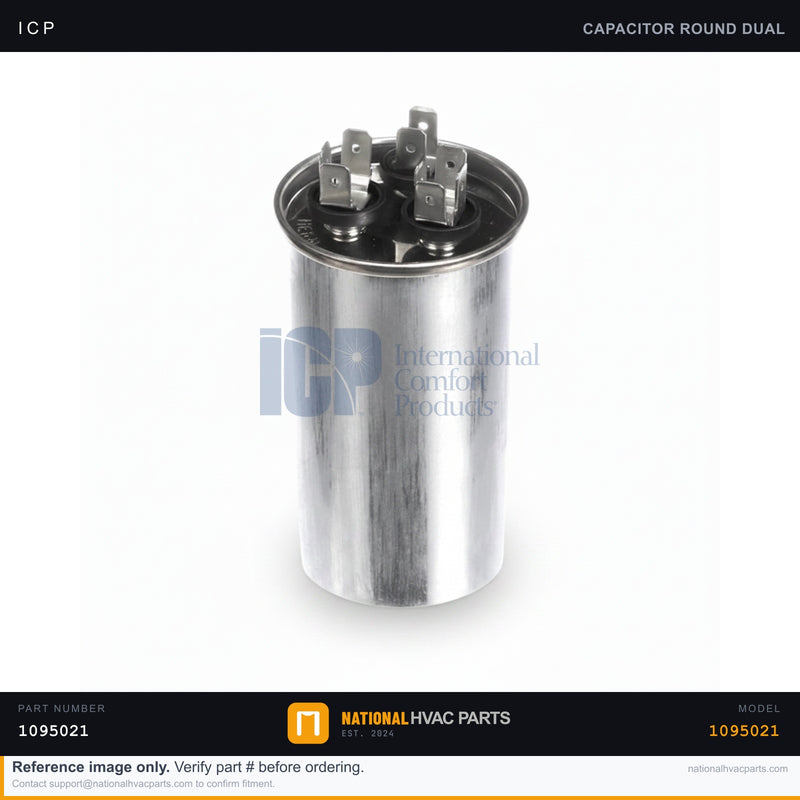

ICP Round Run Capacitor 2 MFD for YG024GB1 — 370/440V | Ships Today

Name: ICP Round Run Capacitor 2 MFD for YG024GB1 — 370/440V | Ships Today
Brand: ICP
SKU: 1095021
Price: 19.43 USD
Availability: InStock

SKU: 1095021 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM round run capacitor (part number 1095021) is a 2 MFD, 370/440V single-run capacitor used in ICP/Tempstar/Heil condensing units and heat pumps such as the YG024GB1. A run capacitor provides the continuous phase shift that keeps a fan or small motor turning efficiently. When it weakens, the motor it supports draws excess current, runs hot, and eventually stalls. Common failure symptoms include a condenser fan that hums but will not spin, a unit that trips on overload, a bulged or leaking capacitor can, and reduced cooling capacity on hot days. Replacing a failed capacitor is one of the most common and lowest-cost HVAC repairs.

Specifications

Spec	Value
Part Number	1095021
Type	Round single-run capacitor
Brand	ICP (Tempstar / Heil)
Capacitance	2 MFD
Voltage	370/440V
Fit	OEM direct replacement

Compatibility

Engineered as a direct OEM replacement for ICP, Tempstar, Heil, and Comfortmaker equipment using part 1095021, including model YG024GB1. Always verify the MFD and voltage rating stamped on your existing capacitor before installation.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter. Discharge the capacitor across its terminals with an insulated resistor before touching it.
Access — Remove the unit service panel to expose the capacitor.
Document — Photograph all wire connections before disconnecting anything.
Remove — Loosen the mounting clamp/strap, pull the spade connectors, and lift out the old capacitor.
Install — Mount the new 2 MFD capacitor in the clamp and reconnect each wire exactly per your photo.
Test — Restore power and confirm the motor starts and runs smoothly without humming or overheating.

Signs You Need a Replacement

Fan or motor hums but will not start
Bulged, swollen, or leaking capacitor housing
Unit intermittently trips the breaker or overload
Measured capacitance is more than 6% below the 2 MFD rating

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Round Run Capacitor 2 MFD fo...

$19.43

Frequently Asked Questions

Does this Capacitor fit my ICP YG024GB1 — 370/440V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP YG024GB1 — 370/440V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP YG024GB1 — 370/440V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
