What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WPG3244060LKC1 — 370V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG3244060LKC1 — 370V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

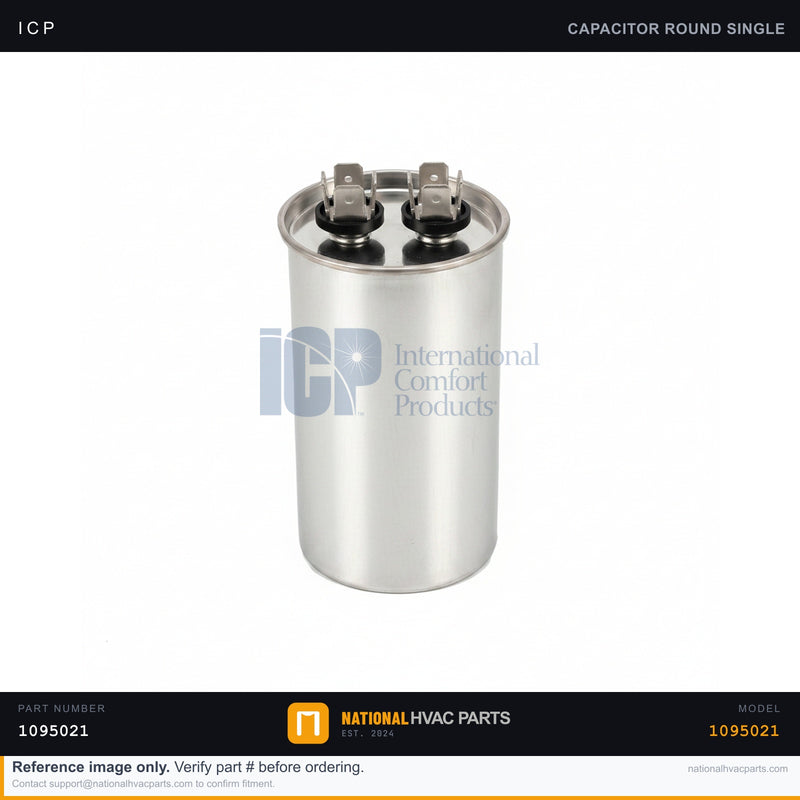

ICP Round Run Capacitor 2.0 MFD for WPG3244060LKC1 — 370V | Ships Today

Name: ICP Round Run Capacitor 2.0 MFD for WPG3244060LKC1 — 370V | Ships Today
Brand: ICP
SKU: 1095021
Price: 24.64 USD
Availability: InStock

SKU: 1095021 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 2.0 MFD round run capacitor provides the phase-shifted starting and running torque for a motor in the ICP WPG3244060LKC1 packaged unit. A run capacitor stores and releases charge to keep a single-phase motor turning efficiently; as it ages, the capacitance drifts below tolerance and the motor struggles to start, runs hot, draws high amps, or fails to spin at all. This listing includes the 2.0 MFD round capacitor (OEM 1095021) and its mounting clamp. A bulged top, leaking oil, or a meter reading well outside the rated 2.0 MFD are clear signs the capacitor is done.

Specifications

Spec	Value
Part Number	1095021
Type	Single-run, round can with clamp
Brand	ICP / Tempstar / Heil
Capacitance	2.0 MFD
Voltage Rating	370 VAC

Compatibility

Direct-fit replacement for the ICP WPG3244060LKC1 and related ICP, Tempstar, Heil, and Comfortmaker units calling for a 2.0 MFD round run capacitor. Confirm the MFD value and voltage rating on your original can before installing — a higher voltage rating (440V) is an acceptable substitute, but the MFD must match.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage and discharge the capacitor across its terminals with an insulated resistor.
Access — Remove the control-panel service panel to reach the capacitor.
Document — Photograph the terminal wiring before disconnecting.
Remove — Pull the spade connectors, loosen the mounting clamp, and lift out the old capacitor.
Install — Secure the new capacitor in the clamp and reconnect the leads to the matching terminals per your photo.
Test — Restore power and confirm the motor starts promptly and runs at normal amperage.

Signs You Need a Replacement

Motor hums but will not start or is slow to spin up.
Capacitor top is bulged, swollen, or leaking oil.
Meter reads outside ±6% of the rated 2.0 MFD.
Motor overheats, trips on internal overload, or draws high amps.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Round Run Capacitor 2.0 MFD ...

$24.64

Frequently Asked Questions

Does this Capacitor fit my ICP WPG3244060LKC1 — 370V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WPG3244060LKC1 — 370V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WPG3244060LKC1 — 370V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
