ICP Hot Surface Igniter with Wiring Kit for RGS090SFBB0AAA — OEM | Ships Today

Overview

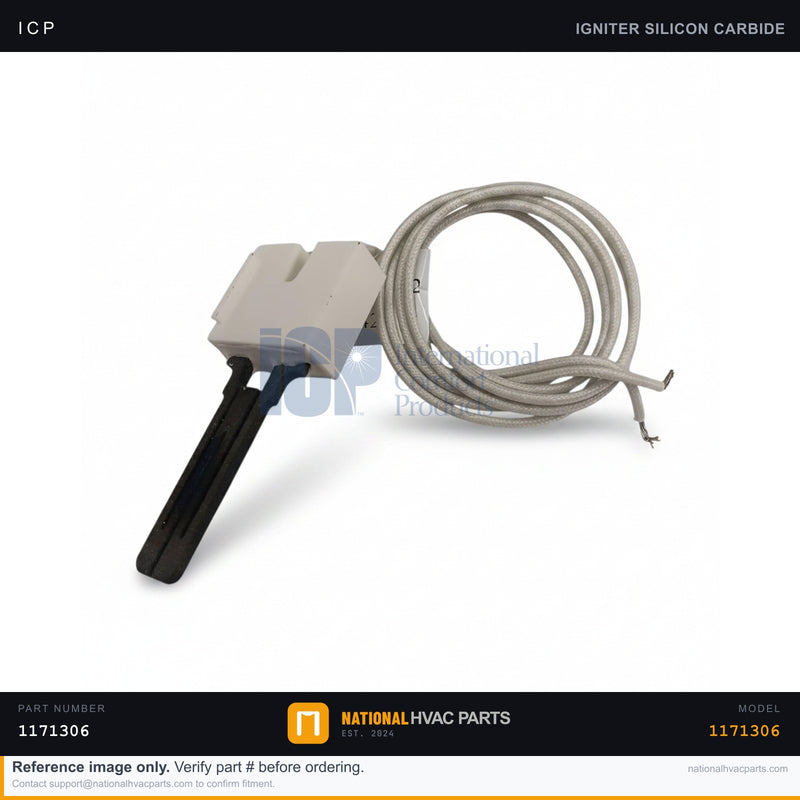

This genuine OEM hot surface igniter (part 1171306) with its matching wiring harness kit (part 1188370) is the ignition source for the ICP/Tempstar/Heil RGS090SFBB0AAA gas furnace. On every heat call, the control board sends line voltage to the igniter, which glows red-hot to ignite the gas at the burners. Hot surface igniters are brittle and degrade over time — the silicon-carbide or nitride element develops micro-cracks from thermal cycling and eventually fails to reach ignition temperature. The result is a furnace that won't light, short-cycles on ignition lockout, or blows cold air. The included wiring kit replaces brittle, heat-damaged leads and connectors so the new igniter gets clean, reliable voltage.

Specifications

Compatibility

Designed for the ICP/Tempstar/Heil RGS090SFBB0AAA gas furnace and related models using this hot surface igniter and harness. Match the igniter mounting and connector style to your existing part before installing.

Installation Guide

1. Safety First — Turn off gas and electrical power, then verify zero voltage with a multimeter.
2. Access — Remove the burner compartment service panel.
3. Document — Photograph the igniter bracket and harness routing before removal.
4. Remove — Unplug the igniter connector and unscrew the igniter bracket; handle only by the ceramic base, never the element.
5. Install — Mount the new igniter, route and connect the new wiring kit, and avoid touching the element with bare fingers.
6. Test — Restore gas and power, call for heat, and confirm the igniter glows and the burners light promptly.

Signs You Need a Replacement

• Furnace blows cold air or won't ignite on a heat call
• Igniter does not glow or glows weakly
• Visible cracks or breaks in the igniter element
• Repeated ignition-failure lockouts or short cycling

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
