ICP Hot Surface Igniter Kit for WFSR100C060A1 — With Bracket | Ships Today

Overview

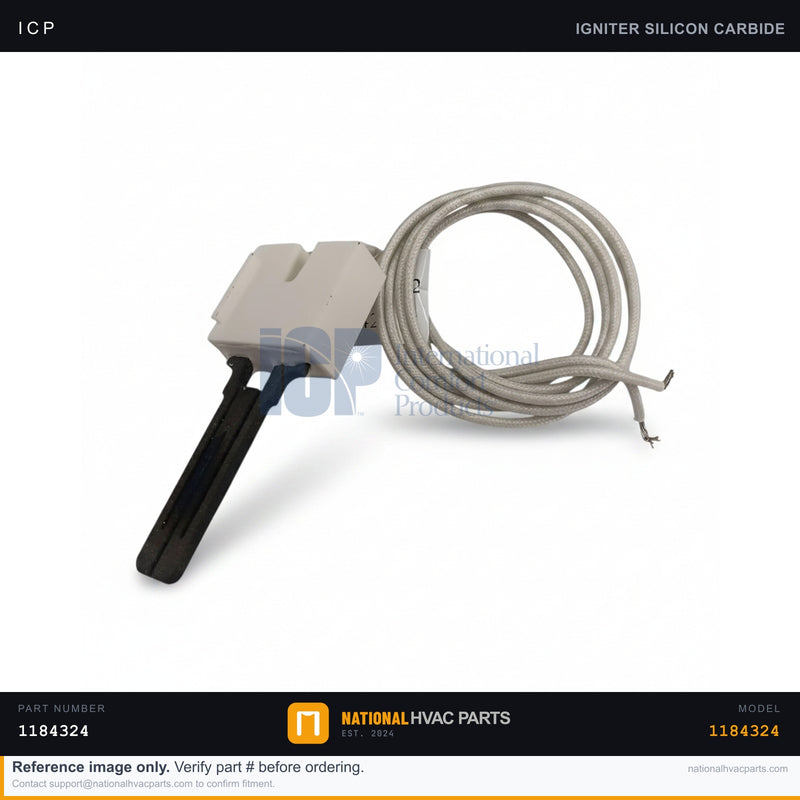

This genuine OEM hot surface igniter kit fits the ICP/Tempstar/Heil WFSR100C060A1 furnace and includes the igniter element (part number 1176919) and its mounting bracket (part number 1184324). The hot surface igniter (HSI) is energized by the control board at the start of each heat cycle; it heats to roughly 1,800–2,500°F to ignite the gas at the burners. Because it is a brittle silicon-carbide or silicon-nitride element, it is one of the most common furnace failure points — it degrades with every ignition cycle and eventually cracks or loses the ability to reach ignition temperature. A failed igniter is the leading cause of a furnace that runs the inducer and clicks but never lights. Never touch the element surface with bare fingers; skin oils create hot spots that shorten its life. The included bracket ensures correct positioning over the burner for reliable flame carry-over.

Specifications

Compatibility

Designed for the ICP / Tempstar / Heil WFSR100C060A1 furnace and shared across ICP-family gas furnaces using the 1176919 igniter and 1184324 bracket. Confirm the connector style and bracket footprint match your existing assembly.

Installation Guide

1. Safety First — Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter.
2. Access — Remove the burner compartment service panel.
3. Document — Photograph the igniter position, bracket orientation, and wire routing before disconnecting.
4. Remove — Unplug the igniter connector and remove the mounting screw; lift out the old igniter and bracket, handling only by the ceramic base.
5. Install — Mount the new bracket and igniter, positioned correctly over the burner, and reconnect the harness — never touch the element surface.
6. Test — Restore power and verify the igniter glows bright orange and gas lights within the trial-for-ignition period.

Signs You Need a Replacement

• Inducer runs and you hear clicking, but the burners never light.
• Igniter shows visible cracks, blistering, or no longer glows.
• Furnace locks out and recycles after repeated failed ignition attempts.
• Resistance reading is open or out of the specified range.
