What igniter fits my ICP furnace?

The correct replacement for ICP model WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

ICP

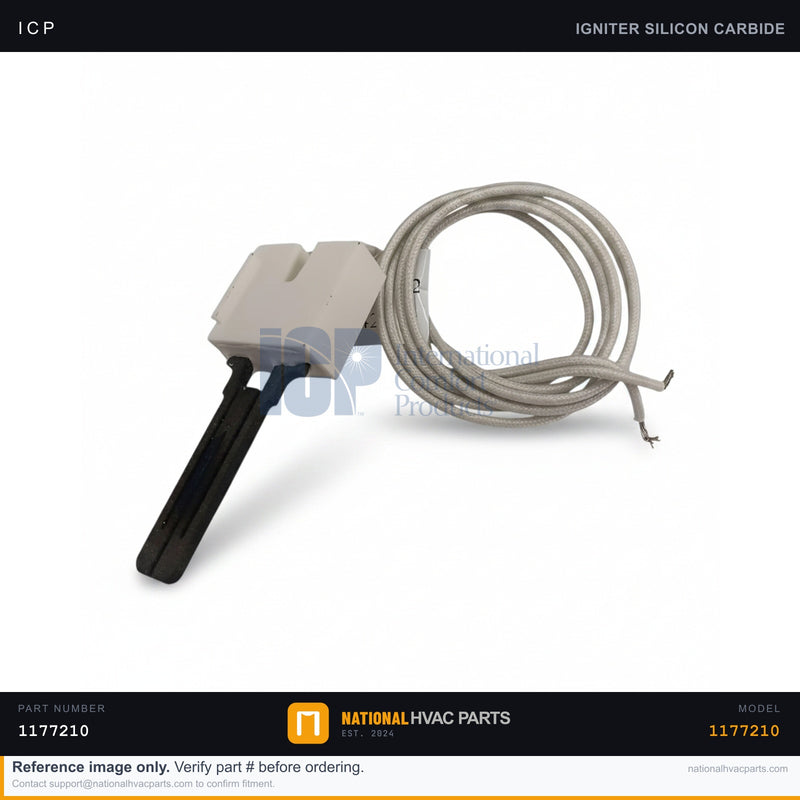

ICP Hot Surface Igniter Kit for WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today

Name: ICP Hot Surface Igniter Kit for WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today
Brand: ICP
SKU: 1177210
Price: 48.04 USD
Availability: InStock

SKU: 1177210 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM hot surface igniter (part #1176919) with its dedicated mounting bracket (part #1177210) and HSI slow-open gas valve (part #1177204, 36J24510) provides the ignition assembly for the ICP Tempstar/Heil WFHR100C060A1 gas furnace. On a call for heat the igniter glows to roughly 2,000°F to light the gas as the valve opens. Igniters are the most common furnace wear part — the brittle silicon-carbide or nitride element cracks from thermal cycling and eventually fails to glow. Symptoms include the furnace clicking and trying to ignite but producing no flame, the blower running cold, a visible crack in the igniter element, or a control lockout after several failed ignition attempts.

Specifications

Spec	Value
Igniter Part Number	1176919
Bracket Part Number	1177210
Gas Valve Part Number	1177204 (HSI Slow, 36J24510)
Type	Hot Surface Igniter
Brand	ICP (Tempstar / Heil)
Ignition Style	Direct Hot Surface Ignition
Fitment	OEM Direct Replacement

Compatibility

Direct-fit replacement assembly for the ICP Tempstar Heil WFHR100C060A1 furnace and related ICP-family hot surface ignition gas furnaces. Verify your model's igniter mounting and valve style before installing.

Installation Guide

Safety First — Disconnect power and shut off the gas supply, then verify zero voltage with a multimeter.
Access — Remove the furnace burner compartment service panel.
Document — Photograph the igniter wiring and bracket orientation before disconnecting.
Remove — Unplug the igniter connector and remove the mounting screw; handle the old igniter only by its base, never the element.
Install — Mount the new igniter on its bracket without touching the element, reconnect the plug, and reinstall the gas valve per photo if replacing.
Test — Restore gas and power, then watch a full ignition cycle to confirm the igniter glows and the burners light.

Signs You Need a Replacement

Furnace clicks and attempts ignition but no flame appears
Visible crack or break in the igniter element
Igniter does not glow on a call for heat
Control board locks out after repeated failed ignition attempts

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Hot Surface Igniter Kit for ...

$48.04

Frequently Asked Questions

Does this Igniter fit my ICP WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today?

Yes. This is the factory-specified OEM igniter for the ICP WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my ICP WFHR100C060A1 — Igniter, Bracket & HSI Gas Valve | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
