ICP Hot Surface Igniter Kit for RGS102HDBA0AAA — Includes Igniter Wiring Harness | Ships Today
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Overview

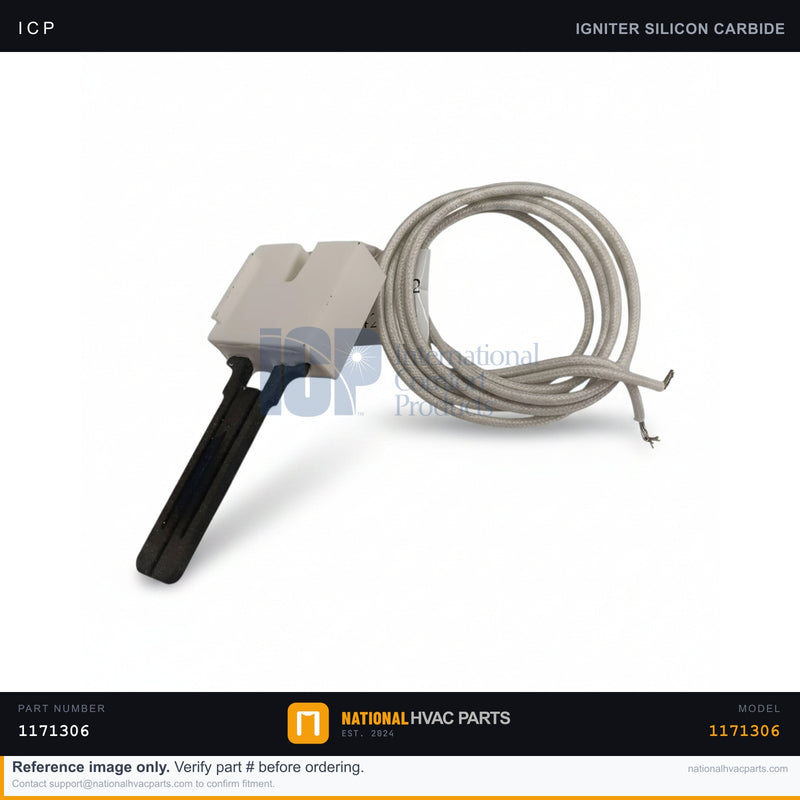

This OEM hot surface igniter kit fits the ICP / Tempstar / Heil RGS102HDBA0AAA gas furnace and includes the igniter element (part number 1171306) plus the matching igniter wiring kit (part number 1188370). On each call for heat, the furnace control board sends voltage to the igniter, which glows to a high temperature and lights the burner gas. Because the igniter is the most heat-stressed component in the ignition sequence, it is also the most common no-heat failure. Typical symptoms include a furnace that clicks and tries to start but never lights, a visibly cracked or broken igniter element, or a unit that goes into lockout after several failed ignition attempts. The included wiring kit ensures a clean, corrosion-free connection at the igniter plug.
Specifications
| Spec | Value |
|---|---|
| Igniter Part Number | 1171306 |
| Wiring Kit Part Number | 1188370 |
| Type | Hot Surface Igniter |
| Brand | ICP / Tempstar / Heil |
| Kit Contents | Igniter + Wiring Harness |
Compatibility
Direct-fit replacement for the ICP Tempstar Heil RGS102HDBA0AAA furnace. The kit format means you replace both the brittle igniter element and its wiring connector in a single service visit.
Installation Guide
- Safety First — Shut off gas and disconnect power at the furnace switch and breaker; verify zero voltage with a multimeter.
- Access — Remove the burner compartment door to reach the igniter at the burner assembly.
- Document — Photograph the igniter mounting position and wiring routing before disconnecting.
- Remove — Unplug the igniter harness, remove the mounting screw(s), and carefully withdraw the old igniter — handle only by the ceramic base, never the element.
- Install — Mount the new igniter (do not touch the silicon element with bare fingers), then connect the new wiring kit to the control board plug.
- Test — Restore gas and power, start a heat cycle, and confirm the igniter glows and the burners light promptly.
Signs You Need a Replacement
- Furnace attempts to start but burners never ignite
- Visible crack, chip, or break in the igniter element
- Igniter no longer glows during the ignition sequence
- Furnace locks out after repeated failed ignition tries
