What igniter fits my ICP furnace?

The correct replacement for ICP model WPG4364060RKA1 — w/ Control Board | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG4364060RKA1 — w/ Control Board | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

ICP

ICP Hot Surface Igniter for WPG4364060RKA1 — w/ Control Board | Ships Today

Name: ICP Hot Surface Igniter for WPG4364060RKA1 — w/ Control Board | Ships Today
Brand: ICP
SKU: 1186861
Price: 54.60 USD
Availability: InStock

SKU: 1186861 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

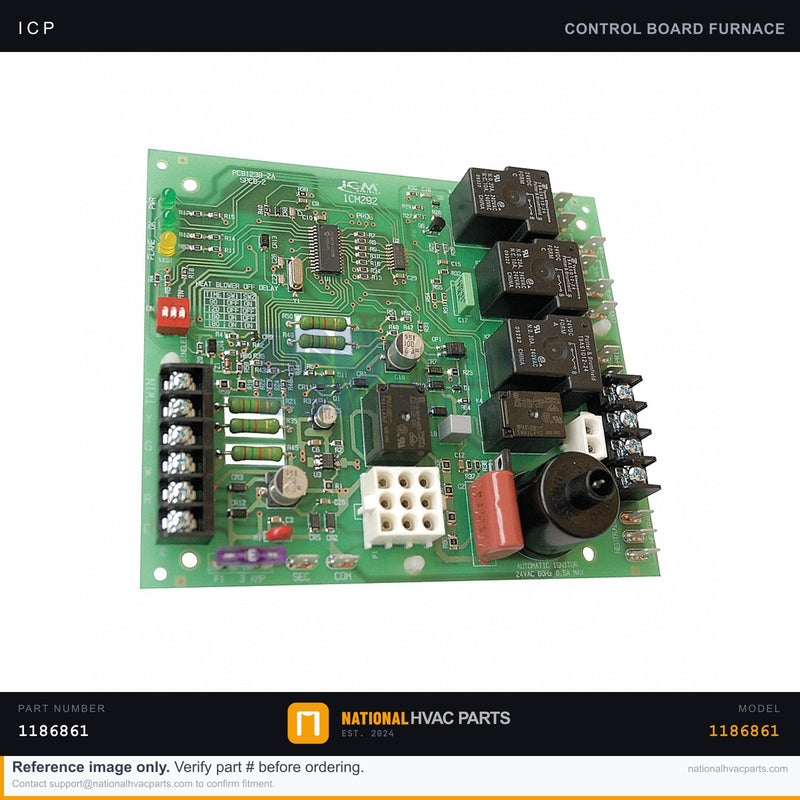

This OEM ignition kit for the ICP (Tempstar / Heil / Comfortmaker) WPG4364060RKA1 packaged unit includes the hot surface igniter (P/N 1177663) and the igniter control board (P/N 1186861). On a call for heat, the control board sends power to the igniter, which glows red-hot to ignite the gas at the burners. The hot surface igniter is a high-wear part — its silicon carbide or silicon nitride element becomes brittle with each heating cycle and eventually cracks, leaving the furnace unable to light. Symptoms of a failed igniter include the inducer running but no burner flame, repeated lockouts, or a visibly cracked igniter element. Replacing the igniter and control board together restores reliable, on-demand ignition.

Specifications

Spec	Value
Part Number	1177663 (igniter), 1186861 (control board)
Type	Hot Surface Igniter
Brand	ICP
Function	Burner ignition
Includes	Igniter control board
Application	Gas furnace / packaged unit heat

Compatibility

Direct OEM fit for the ICP WPG4364060RKA1 packaged unit and other Tempstar, Heil, and Comfortmaker models using this hot surface igniter and igniter control board. Handle the igniter element only by its ceramic base — skin oils shorten its life.

Installation Guide

Safety First — Disconnect power and shut off the gas supply, then verify zero voltage with a multimeter.
Access — Remove the burner/control compartment access panel.
Document — Photo the igniter mounting and all board wiring before disconnecting.
Remove — Unplug the igniter harness, remove the mounting screw, and carefully withdraw the old igniter; swap the control board if included.
Install — Mount the new igniter without touching the element, reconnect the harness, and seat the control board per your photo.
Test — Restore gas and power, then watch a full ignition sequence to confirm the igniter glows and the burners light.

Signs You Need a Replacement

Inducer runs but burners never ignite
Visible crack or break in the igniter element
Igniter no longer glows on a call for heat
Furnace locks out after several failed ignition attempts

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Hot Surface Igniter for WPG4...

$54.60

Frequently Asked Questions

Does this Igniter fit my ICP WPG4364060RKA1 — w/ Control Board | Ships Today?

Yes. This is the factory-specified OEM igniter for the ICP WPG4364060RKA1 — w/ Control Board | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my ICP WPG4364060RKA1 — w/ Control Board | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
