ICP Hot Surface Igniter for RGS213SEEA0AAAA — Ignitor Electrode | Ships Today

Overview

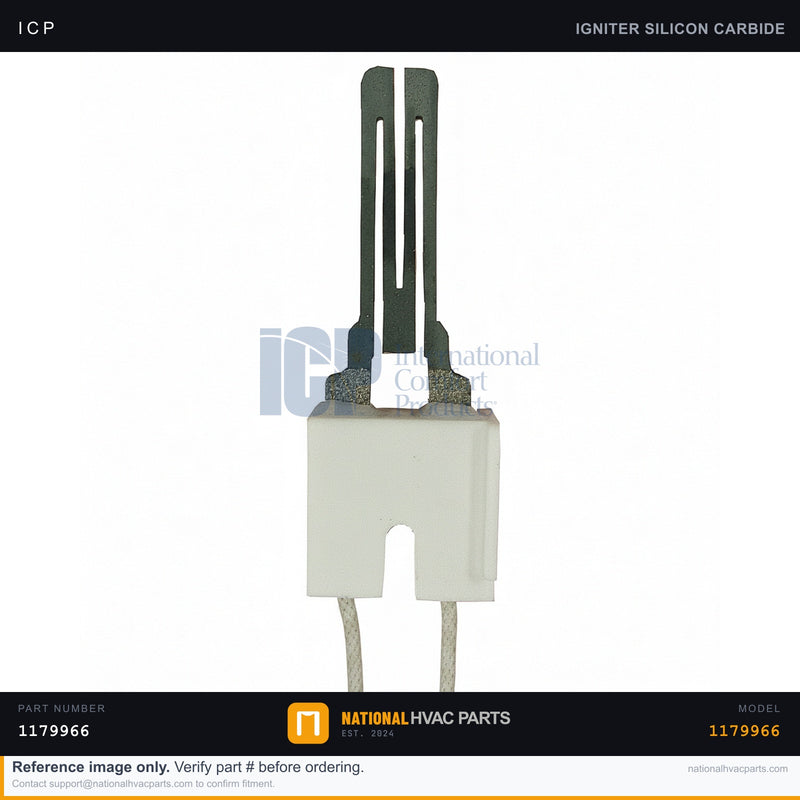

This OEM ICP igniter electrode (part number 1179966) is the ignition component that lights the burners on your gas furnace. When the control board calls for heat, the igniter heats to the temperature required to ignite gas at the burner. Igniters are brittle and consumable — they degrade with every heating cycle and eventually crack, develop hairline fractures, or fail to reach ignition temperature. A failed igniter is the single most common cause of a furnace that runs the inducer and clicks but produces no heat.

Specifications

Compatibility

Direct-fit OEM replacement for ICP / Heil / Tempstar / Comfortmaker model RGS213SEEA0AAAA and other ICP-family gas furnaces using this igniter electrode assembly. Always confirm the bracket and connector match your existing unit.

Installation Guide

1. Safety First — Shut off gas and disconnect power, then verify zero voltage with a multimeter.
2. Access — Remove the furnace burner/service panel.
3. Document — Photograph the igniter bracket position and wiring before removal.
4. Remove — Unplug the igniter connector and remove the mounting screw(s); handle the old igniter only by its ceramic base.
5. Install — Mount the new igniter without touching the hot surface element with bare fingers, then reconnect the plug.
6. Test — Restore gas and power, then watch a full ignition cycle to confirm reliable light-off.

Signs You Need a Replacement

• Furnace runs inducer and clicks but never lights
• Visible cracks or breaks in the igniter element
• Igniter glows weakly or not at all
• Intermittent no-heat calls, especially on cold mornings

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
