What igniter fits my ICP furnace?

The correct replacement for ICP model RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

ICP

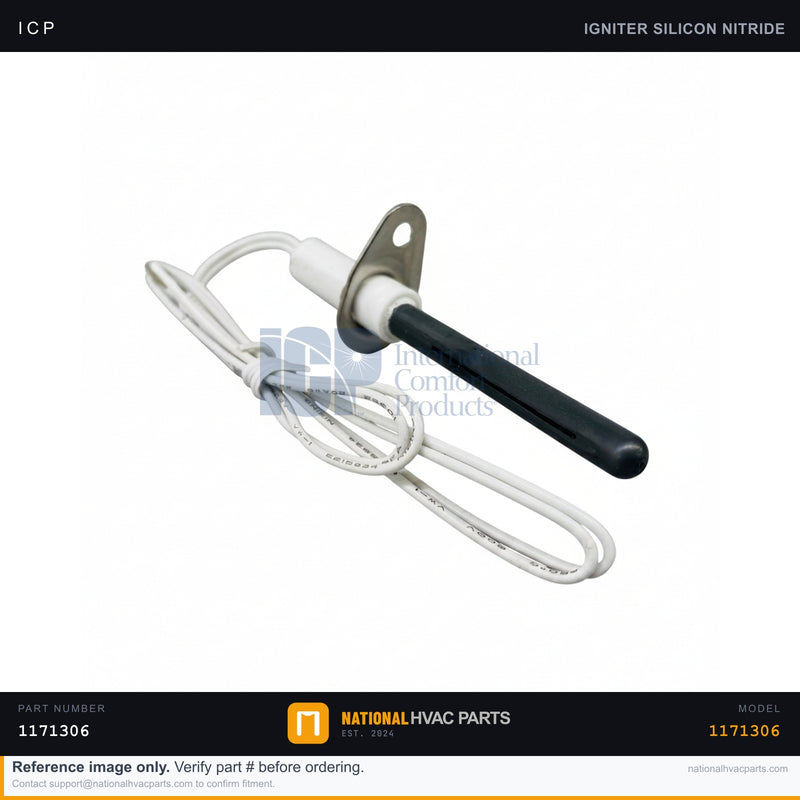

ICP Hot Surface Igniter for RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today

Name: ICP Hot Surface Igniter for RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today
Brand: ICP
SKU: 1171306
Price: 42.84 USD
Availability: InStock

SKU: 1171306 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM hot surface igniter (HSI) is the direct-fire ignition source for the ICP / Tempstar / Heil RGS121LSAB0AAAA gas furnace. When the thermostat calls for heat, the integrated furnace control energizes this 120V silicon nitride element, which glows incandescent within seconds to light the main burners. A failed igniter is one of the most common causes of no-heat calls: the element grows brittle with every heating cycle and eventually cracks, leaving the furnace to lock out after several failed ignition attempts. This listing includes OEM igniter 1171306 and the matching igniter wiring kit 1188370 so the connector and harness pigtail are replaced together for a clean, reliable connection.

Specifications

Spec	Value
OEM Part Number	1171306 (Igniter), 1188370 (Wiring Kit)
Type	Hot Surface Igniter (Silicon Nitride)
Brand	ICP / Tempstar / Heil
Voltage	120V
Fit	OEM Direct Replacement

Compatibility

Engineered for the ICP family RGS121LSAB0AAAA gas furnace and shared-platform Tempstar, Heil, and Comfortmaker models using the same 120V hot surface ignition system. Always confirm your OEM part number against the unit rating plate before ordering.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker; verify zero voltage with a multimeter and shut off the gas.
Access — Remove the furnace burner/service panel.
Document — Photograph the igniter bracket position and wire routing before disconnecting.
Remove — Unplug the igniter harness, remove the mounting screw, and lift out the old igniter without touching the element. Install the new wiring kit pigtail.
Install — Mount the new igniter so it sits centered in the burner flame path; never touch the white element with bare fingers. Reconnect per your photo.
Test — Restore gas and power, call for heat, and confirm the igniter glows and burners light within the ignition trial.

Signs You Need a Replacement

Furnace clicks and tries to start but never lights, then locks out
No visible glow at the igniter during a heat call
Visible cracks, white powder, or breaks in the igniter element
Intermittent heating that worsens over the season

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Hot Surface Igniter for RGS1...

$42.84

Frequently Asked Questions

Does this Igniter fit my ICP RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today?

Yes. This is the factory-specified OEM igniter for the ICP RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my ICP RGS121LSAB0AAAA — Silicon Nitride 120V | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
