What are the specs for this Control Board?

The correct replacement for ICP model SUP15E230V1IA — OEM B0353101 | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number SUP15E230V1IA — OEM B0353101 | Ships Today.

ICP

ICP Furnace Control Board Kit for SUP15E230V1IA — OEM B0353101 | Ships Today

Name: ICP Furnace Control Board Kit for SUP15E230V1IA — OEM B0353101 | Ships Today
Brand: ICP
SKU: B0353101
Price: 246.94 USD
Availability: InStock

SKU: B0353101 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

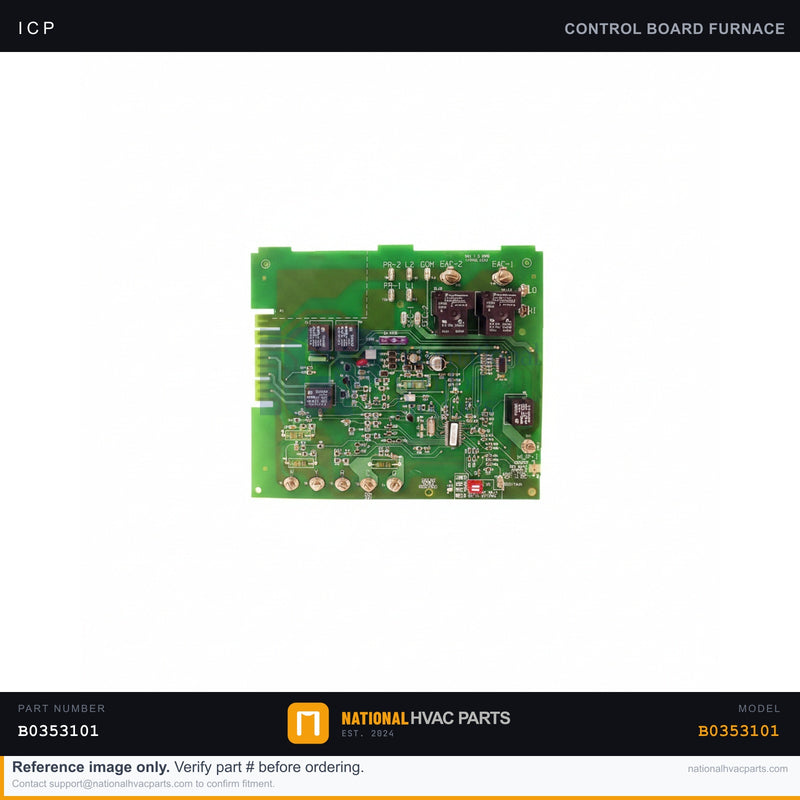

This is a genuine OEM control board kit for the ICP / Tempstar / Heil SUP15E230V1IA package unit, consisting of the circuit board (part number B0353101) and its dedicated mounting plate (B03529). The control board is the brain of the unit — it sequences ignition, the blower, and safety circuits, monitors limit and pressure switches, and translates thermostat calls into staged operation. When the board fails, the system can lose heating or cooling entirely, throw fault/flash codes, short-cycle, or leave the blower running nonstop. This OEM kit restores factory logic and timing exactly, and the included mounting plate ensures correct positioning and grounding.

Specifications

Spec	Value
Board Part Number	B0353101
Mounting Plate	B03529
Type	Integrated Control Board Kit
Brand	ICP / Tempstar / Heil
Fits Model	SUP15E230V1IA
Fitment	OEM factory replacement

Compatibility

Built as the factory-correct control board and mounting plate for the ICP / Tempstar / Heil SUP15E230V1IA and shared across related SUP15 series units on the same control platform. Match the printed board number (B0353101) to your existing board before installing, and confirm the diagnostic LED and connector layout are identical.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the control/blower service panel to reach the board assembly.
Document — Photograph every harness plug and its position; note any dip-switch or jumper settings on the old board.
Remove — Unplug each harness, remove the screws holding the board and plate, and lift out the assembly.
Install — Mount the new board on the B03529 plate, set it into position, and reconnect every harness per your photo and dip-switch notes.
Test — Restore power, run a heat and a cool call, and confirm correct ignition, blower timing, and a normal diagnostic LED with no fault codes.

Signs You Need a Replacement

No response to thermostat calls or a dark/erratic diagnostic LED.
Blower runs continuously or won't start.
Repeated fault/flash codes pointing to the control.
Visible burnt traces, scorched relays, or a cracked board.

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns on unused parts. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Furnace Control Board Kit fo...

$246.94

Frequently Asked Questions

Does this Control Board fit my ICP SUP15E230V1IA — OEM B0353101 | Ships Today?

Yes. This is the factory-specified OEM control board for the ICP SUP15E230V1IA — OEM B0353101 | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my ICP SUP15E230V1IA — OEM B0353101 | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
