ICP Furnace Control Board for WPG3484130RKC1 — Integrated Ignition Control | Ships Today

Overview

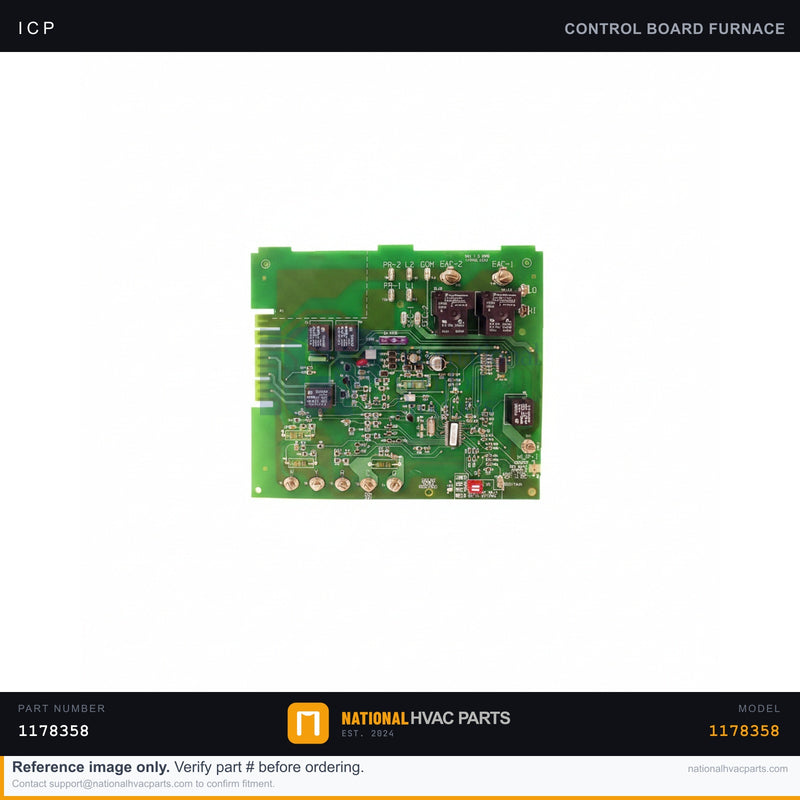

This OEM integrated furnace control board (circuit board P/N 1178358, ignition control module P/N 1177661) is the brain of the ICP WPG3484130RKC1 packaged gas/electric unit. It manages the ignition sequence, monitors flame, sequences the inducer and blower, and protects the system through its safety interlocks on the 24V control circuit. When this board fails, the furnace section will not light, will short-cycle, or will lock out — leaving you with no heat. Common failure signs include a unit that hums but never ignites, error/flash codes on the diagnostic LED, or intermittent operation in cold weather.

Specifications

Compatibility

Engineered specifically for the ICP / Tempstar / Heil WPG3484130RKC1 packaged unit and its related WPG-series gas/electric models. Always match the part number on your existing board before ordering.

Installation Guide

1. Safety First — Disconnect power at the unit disconnect and verify zero voltage with a multimeter before touching any wiring.
2. Access — Remove the furnace section service panel to expose the control board.
3. Document — Take a clear photo of every wire and connector before disconnecting anything.
4. Remove — Unplug the molex harnesses and spade terminals, remove the mounting screws, and lift the old board out.
5. Install — Mount the new board, then reconnect each harness and terminal exactly per your photo.
6. Test — Restore power and verify a full ignition sequence: inducer start, igniter glow, flame, and blower engagement.

Signs You Need a Replacement

• Furnace inducer runs but the unit never lights
• Diagnostic LED shows a fault or lockout flash code
• Intermittent ignition or repeated short-cycling
• Burned, cracked, or corroded board traces and relays

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
