The correct replacement for ICP model WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today.

ICP

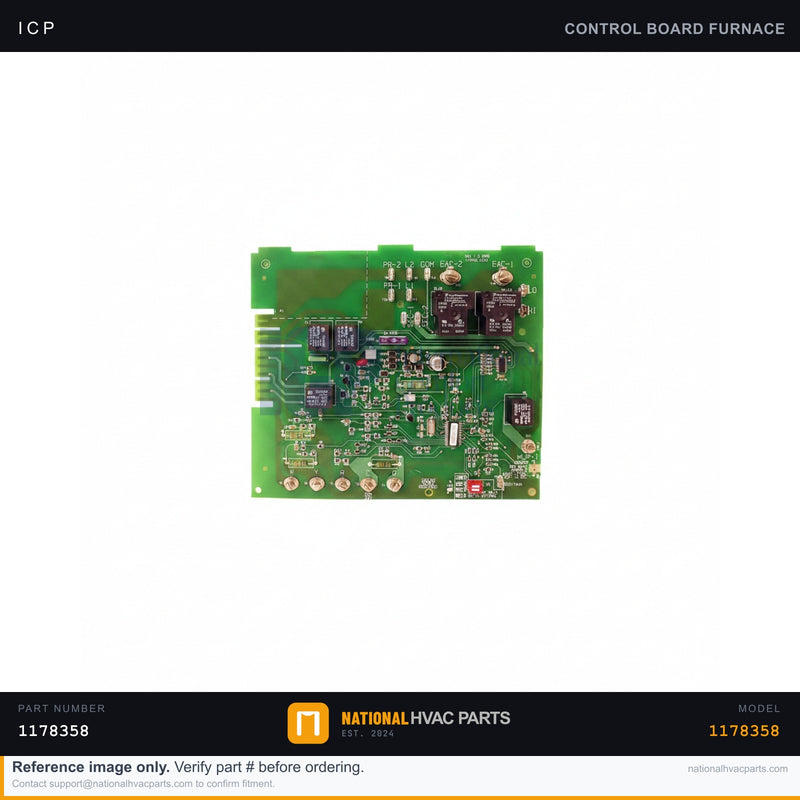

ICP Furnace Control Board for WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today

Name: ICP Furnace Control Board for WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today
Brand: ICP
SKU: 1178358
Price: 214.50 USD
Availability: InStock

SKU: 1178358 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM integrated furnace control board is the electronic brain of the ICP Tempstar Heil WPG3424090RKC1 packaged gas unit. It manages the ignition sequence, sequences the inducer and blower motors, monitors flame and pressure-switch safeties, and coordinates the call for heat from the thermostat. Replaces OEM circuit board 1178358 and ignition control module 1177661. When this board fails, the furnace section will not light, will short-cycle, or will lock out on safety even when every other component is healthy. Common failure signs include no inducer start on a heat call, a board with no diagnostic LED activity, scorched relays, or repeated ignition lockouts. The board operates on a 24V control circuit and includes the integrated hot-surface ignition control logic.

Specifications

Spec	Value
Part Number	1178358 (Circuit Board) / 1177661 (Ignition Control Module)
Type	Integrated Furnace Control Board with Ignition Control
Brand	ICP (Tempstar / Heil)
Control Voltage	24V
Ignition	Hot Surface Ignition (HSI) control
Fit	OEM Direct Replacement

Compatibility

Engineered as a direct-fit replacement for the ICP Tempstar Heil WPG3424090RKC1 packaged gas/electric unit. ICP manufactures under multiple brand names including Tempstar, Heil, Comfortmaker, and Arcoaire — this board fits the corresponding models that originally shipped with OEM 1178358 / 1177661. Always confirm the part number on your existing board before ordering.

Installation Guide

Safety First — Disconnect power at the unit disconnect and verify zero voltage with a multimeter.
Access — Remove the control/blower compartment service panel.
Document — Photograph every wire and connector position on the existing board before disconnecting.
Remove — Unplug the wiring harnesses and molex connectors, remove the mounting screws, and lift out the old board.
Install — Mount the new board on the same standoffs and reconnect each harness exactly per your photo.
Test — Restore power, initiate a heat call, and confirm the inducer, igniter, gas valve, and blower sequence correctly with no lockout.

Signs You Need a Replacement

Furnace section will not ignite or has no inducer activity on a heat call.
Repeated ignition lockouts or rapid short-cycling.
No diagnostic LED flash codes or erratic flashing.
Visible burn marks, swollen relays, or corrosion on the board.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Furnace Control Board for WP...

$214.50

Frequently Asked Questions

Does this Control Board fit my ICP WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today?

Yes. This is the factory-specified OEM control board for the ICP WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my ICP WPG3424090RKC1 — Integrated Ignition Control Module | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
