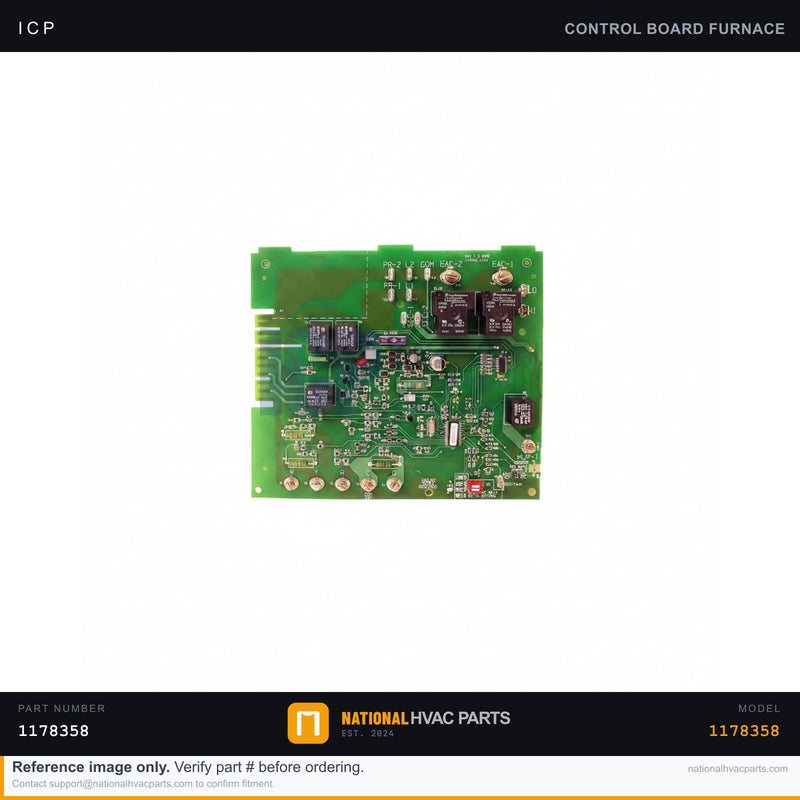

ICP Furnace Control Board for WPG3424090LKC1 — Integrated Ignition Control | Ships Today

Name: ICP Furnace Control Board for WPG3424090LKC1 — Integrated Ignition Control | Ships Today
Brand: ICP
SKU: 1178358
Price: 218.40 USD
Availability: InStock

SKU: 1178358 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM integrated furnace control board is the brain of the ICP WPG3424090LKC1 system. It sequences the entire heating cycle — verifying safety switches, energizing the hot surface igniter, opening the gas valve, proving flame, and timing the inducer and blower motors. The companion ignition control module (1177661) handles igniter timing and flame sense. A failed control board is a frequent cause of no-heat calls: the unit may not respond to a call for heat, the igniter may never glow, the blower may run continuously or not at all, or the board may lock out and flash a fault code. Cracked solder joints, blown onboard fuses, burnt relays, and corroded connectors are typical failure points.

Specifications

Spec	Value
Part Number	1178358 (Circuit Board), 1177661 (Ignition Control Module)
Type	Integrated Furnace / Ignition Control Board
Brand	ICP / Heil / Tempstar
Control Voltage	24V
Function	Ignition, blower & safety sequencing with diagnostic LED
Fit	OEM Replacement

Compatibility

Direct-fit OEM replacement for the ICP / Heil / Tempstar / Comfortmaker WPG3424090LKC1 packaged unit. Match your existing board's part number and connector layout before installing, as control boards are model-specific.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter before opening the control box.
Access — Remove the control/blower access panel.
Document — Photograph every wire harness and connector position on the board before disconnecting anything.
Remove — Unplug the connectors, release the board standoffs/screws, and lift the old board out.
Install — Mount the new board on the standoffs and reconnect each harness exactly per your photos; set any DIP switches to match the original.
Test — Restore power, initiate a call for heat, and confirm a full ignition and blower cycle with no fault codes on the diagnostic LED.

Signs You Need a Replacement

No response to a call for heat — igniter never energizes
Blower runs constantly or fails to start
Repeated lockout or flashing fault/error codes on the board LED
Visible burnt relays, scorched traces, or a blown onboard fuse

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
