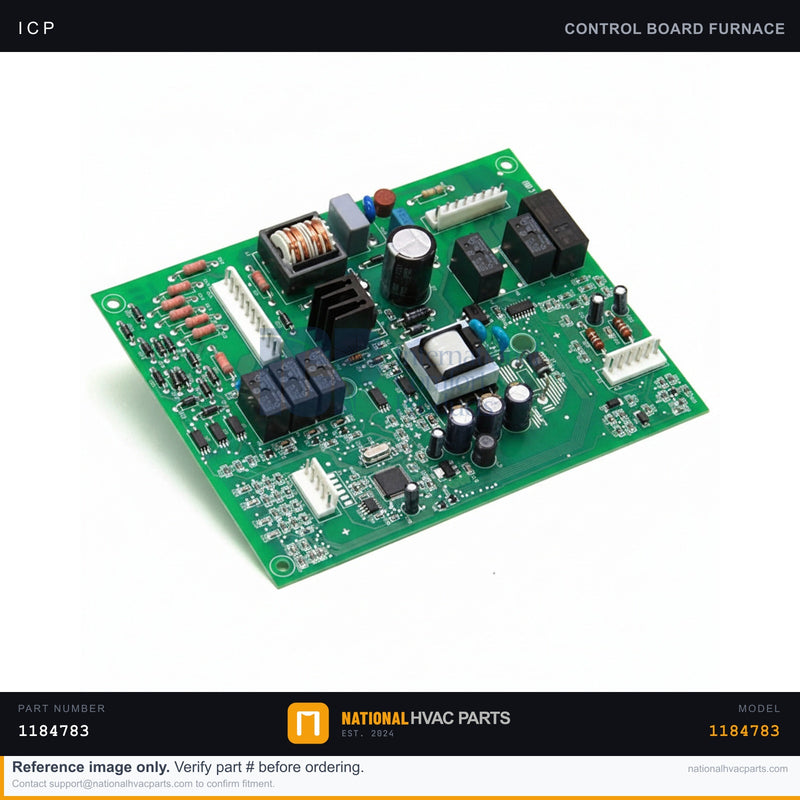

ICP Furnace Control Board for WFSR120D060A1 — OEM Integrated Ignition | Ships Today

Name: ICP Furnace Control Board for WFSR120D060A1 — OEM Integrated Ignition | Ships Today
Brand: ICP
SKU: 1184783
Price: 246.94 USD
Availability: InStock

SKU: 1184783 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is the genuine OEM integrated furnace control board (part 1184783) for the ICP/Tempstar/Heil WFSR120D060A1 gas furnace. The control board is the brain of the furnace: it sequences the inducer, igniter, gas valve, and blower while monitoring flame, limit, and pressure safeties. A failed board produces no-heat calls, erratic cycling, blower problems, or repeated lockouts. Replacing the board restores correct ignition timing and safety supervision.

Specifications

Spec	Value
Part Number	1184783
Type	Integrated ignition / blower control board
Brand	ICP / Tempstar / Heil
Control Voltage	24 VAC
Function	Inducer, igniter, gas valve, blower timing, safety monitoring
Diagnostics	On-board LED fault codes

Compatibility

Direct OEM replacement for the WFSR120D060A1 furnace and related ICP-family models that share this board. Compare the printed part number 1184783 on your existing board and match the connector layout before installing.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter.
Access — Remove the blower compartment service panel to expose the control board.
Document — Photograph every wiring harness and connector position before disconnecting; note the dip-switch or jumper settings.
Remove — Unplug each connector, release the board standoffs or screws, and lift the old board out.
Install — Mount the new board on the same standoffs, transfer all connectors per your photo, and replicate the original switch settings.
Test — Restore power and run a full heat cycle; confirm normal LED status and proper ignition-to-blower sequencing.

Signs You Need a Replacement

Furnace fails to ignite or locks out repeatedly
Blower won't start, won't stop, or runs continuously
Flashing fault LED indicating a control fault
Visible burn marks, scorched relays, or corrosion on the board

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Furnace Control Board for WF...

$246.94

Frequently Asked Questions

Does this Control Board fit my ICP WFSR120D060A1 — OEM Integrated Ignition | Ships Today?

Yes. This is the factory-specified OEM control board for the ICP WFSR120D060A1 — OEM Integrated Ignition | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my ICP WFSR120D060A1 — OEM Integrated Ignition | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
