What are the specs for this Control Board?

The correct replacement for ICP model WFAR100C060A1 — Integrated Control | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WFAR100C060A1 — Integrated Control | Ships Today.

ICP

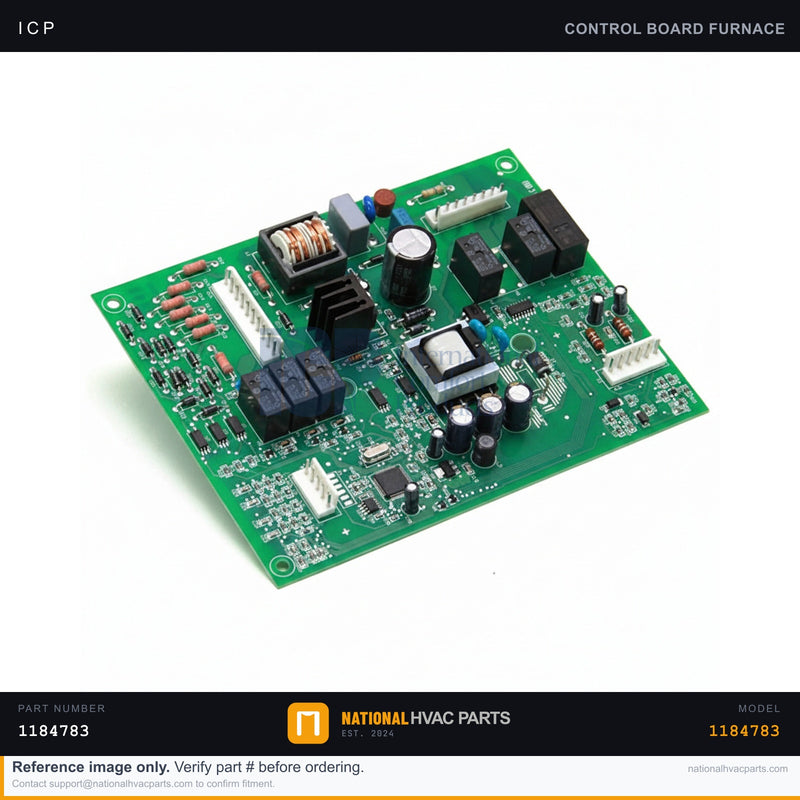

ICP Furnace Control Board for WFAR100C060A1 — Integrated Control | Ships Today

Name: ICP Furnace Control Board for WFAR100C060A1 — Integrated Control | Ships Today
Brand: ICP
SKU: 1184783
Price: 240.44 USD
Availability: InStock

SKU: 1184783 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is a genuine OEM integrated furnace control board (part number 1184783) for the ICP / Tempstar / Heil WFAR100C060A1 gas furnace. The control board is the brain of the furnace — it sequences the ignition cycle, controls the inducer and blower motors, monitors the safety circuit (limit switches, pressure switch, flame sensor), and manages the gas valve and 24V control outputs. When the board fails the furnace may behave erratically or stop entirely. Common symptoms include no response to a call for heat, the inducer or blower not running, flashing fault LEDs that don't match any single component fault, or visible burn marks, cracked solder joints, or a blown onboard fuse.

Specifications

Spec	Value
OEM Part Number	1184783
Type	Integrated furnace control board
Brand	ICP (Tempstar / Heil / Comfortmaker)
Function	Ignition, blower, inducer, and safety circuit control
Control Voltage	24 VAC
Diagnostics	Onboard fault LED
Fitment	OEM direct replacement

Compatibility

A direct OEM replacement for the ICP WFAR100C060A1 furnace and used across many ICP-family furnaces sold under the Tempstar, Heil, Comfortmaker, Arcoaire, KeepRite and Day & Night brands. Match the OEM part number and connector layout to your existing board before ordering.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter.
Access — Remove the furnace blower-compartment service panel to expose the control board.
Document — Photograph every wire harness and plug connection, and note any DIP-switch or jumper settings.
Remove — Unplug each connector, remove the board mounting screws, and lift out the failed board.
Install — Mount the new board, replicate any DIP-switch settings, and reconnect every harness exactly per your photo.
Test — Restore power, run a full heat cycle, and confirm proper ignition, blower operation, and a normal status LED.

Signs You Need a Replacement

No response to a thermostat call for heat with power confirmed
Inducer or blower motor will not energize
Erratic operation or fault codes that don't trace to one component
Visible burn marks, corroded relays, or a blown onboard fuse

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Furnace Control Board for WF...

$240.44

Frequently Asked Questions

Does this Control Board fit my ICP WFAR100C060A1 — Integrated Control | Ships Today?

Yes. This is the factory-specified OEM control board for the ICP WFAR100C060A1 — Integrated Control | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my ICP WFAR100C060A1 — Integrated Control | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
