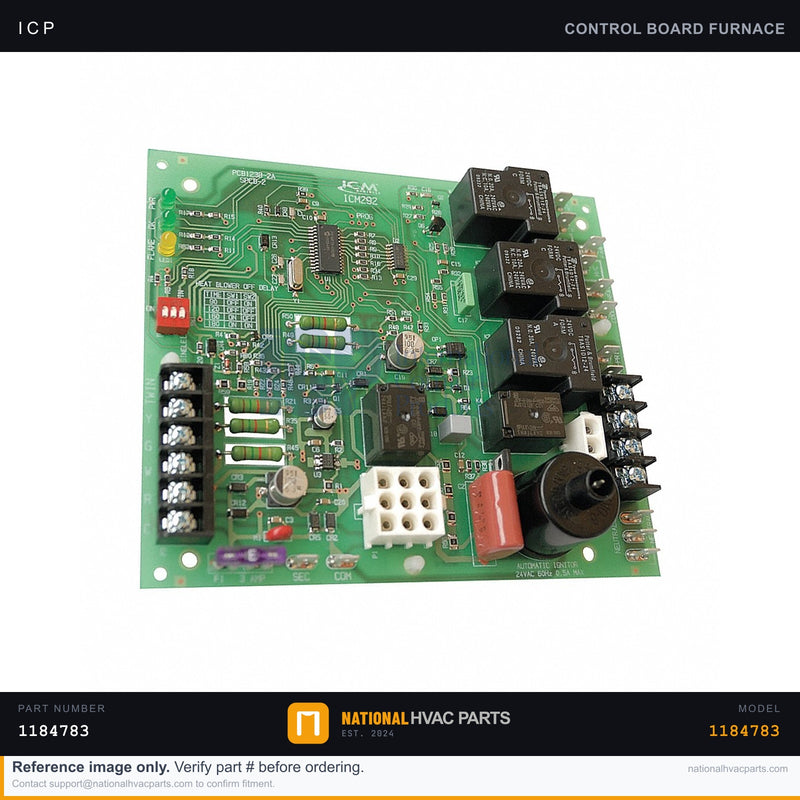

ICP Furnace Control Board for WFAR060B048B1 — Integrated Ignition Module | Ships Today

Name: ICP Furnace Control Board for WFAR060B048B1 — Integrated Ignition Module | Ships Today
Brand: ICP
SKU: 1184783
Price: 214.50 USD
Availability: InStock

SKU: 1184783 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM integrated furnace control board (part number 1184783) is the brain of the ICP/Tempstar/Heil WFAR060B048B1 gas furnace. It sequences the entire heating cycle — energizing the inducer, proving the pressure switch, firing the hot surface igniter, opening the gas valve, monitoring flame sense, and timing the blower on and off. It also enforces safety lockouts and reports fault codes via its diagnostic LED. When the board fails, the furnace may be completely unresponsive, stuck on the blower, short-cycle, or flash error codes that don't clear after checking sensors and switches. Replacing it restores correct, safe ignition and blower control.

Specifications

Spec	Value
Part Number	1184783
Type	Integrated Furnace Control Board
Brand	ICP / Tempstar / Heil
Line Voltage	120 VAC
Control Voltage	24 VAC
Diagnostics	Onboard fault-code LED
Fit	OEM direct replacement

Compatibility

Designed for the ICP/Tempstar/Heil WFAR060B048B1 gas furnace and related ICP-family models using this integrated ignition control board. Confirm the board layout and connector positions against your original before installing.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter.
Access — Remove the control compartment service panel.
Document — Photograph every wire harness and connector on the old board before disconnecting anything.
Remove — Unplug all harnesses, remove the board mounting screws, and lift out the old board.
Install — Mount the new board, transfer each connector to the matching terminal exactly per your photo, and set any required dip-switch/jumper to match the original.
Test — Restore power, run a full heat cycle, and confirm correct ignition, blower timing, and a steady diagnostic LED.

Signs You Need a Replacement

Furnace completely unresponsive to a call for heat
Blower runs continuously or never starts
Persistent fault codes that remain after sensors and switches check good
Visible burn marks, corroded relays, or a no-light diagnostic LED

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
