What HP motor do I need for my ICP unit?

The correct replacement for ICP model WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

ICP

ICP Fan Motor for WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today

Name: ICP Fan Motor for WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today
Brand: ICP
SKU: 1185157
Price: 240.50 USD
Availability: InStock

SKU: 1185157 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

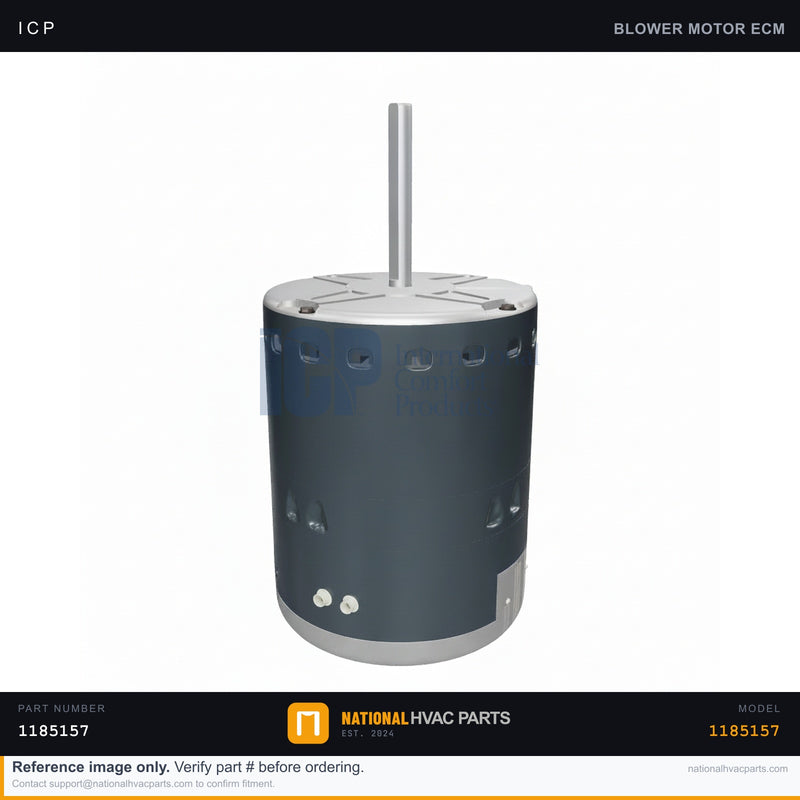

This is the OEM ICP 1/2 HP ECM blower motor (part number 1185157) used as the indoor blower in ICP, Heil, and Tempstar air handlers. As an electronically commutated motor, it delivers efficient, quieter, soft-start airflow and modulates to maintain consistent air delivery across the system. A failing ECM blower motor commonly presents as no blower operation, a motor that hums but will not spin, intermittent or surging airflow, or a system that runs without ever satisfying the thermostat because air is not moving across the indoor coil.

Specifications

Spec	Value
OEM Part Number	1185157
Type	ECM Blower Motor
Brand	ICP / Heil / Tempstar
Horsepower	1/2 HP
Motor Class	Electronically Commutated
Application	Indoor Blower / Air Handler
Fit	OEM Direct Replacement

Compatibility

Direct OEM fit for the ICP / Heil / Tempstar WAHL364B1 air handler. This 1/2 HP ECM blower motor is shared across ICP-family equipment using the same indoor blower platform. Confirm the horsepower and OEM part number on your existing motor before ordering.

Installation Guide

Safety First — Disconnect power at the breaker and unit disconnect, then verify zero voltage at the motor leads with a multimeter.
Access — Remove the blower compartment service panel.
Document — Photograph all wiring, the motor mount orientation, and the blower wheel position before disconnecting.
Remove — Unplug the motor and control harness, loosen the blower wheel set screw, remove the mount band/bolts, and slide the motor out.
Install — Transfer the blower wheel to the new shaft at the same depth, mount the motor, and reconnect the harness exactly per your photos.
Test — Restore power, initiate a call, and confirm smooth ramp-up, proper airflow, and no abnormal noise or vibration.

Signs You Need a Replacement

Blower will not start or only hums when energized
Intermittent, surging, or short-cycling airflow
Weak or no airflow at the registers with the system calling
Burning smell, overheating, or scorched windings

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Fan Motor for WAHL364B1 — 1/...

$240.50

Frequently Asked Questions

Does this Fan Motor fit my ICP WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today?

Yes. This is the factory-specified OEM fan motor for the ICP WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my ICP WAHL364B1 — 1/2 HP ECM Blower Motor | Ships Today?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
