ICP Fan Motor Control for WAHT424A1 — ECM X-13 1/2 HP | Ships Today

Overview

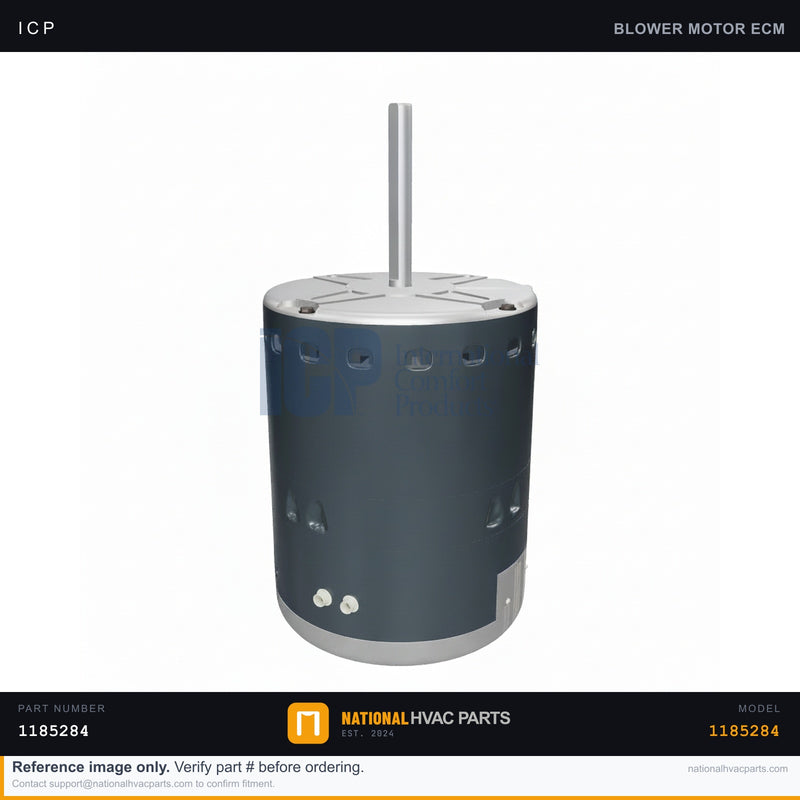

This is a genuine OEM ICP ECM X-13 motor control module (part number 1185284), a 1/2 HP constant-torque blower motor used in the WAHT424A1 air handler. The X-13 ECM provides quiet, efficient, multi-tap airflow while consuming significantly less electricity than an older PSC motor. Symptoms of a failing X-13 include a blower that will not start, intermittent operation, loud humming or buzzing at startup, and weak or uneven airflow. Because the control electronics live inside the motor end-bell, a failure requires replacing the complete motor-control unit rather than just a capacitor.

Specifications

Compatibility

Engineered as a direct OEM fit for the ICP/Tempstar/Heil WAHT424A1 fan coil air handler. Confirm the part number on your existing motor before ordering, as ICP uses several X-13 horsepower ratings across the WAHT line.

Installation Guide

1. Safety First — Disconnect power at the breaker and verify zero voltage at the motor leads with a multimeter.
2. Access — Remove the air handler blower-compartment service panel.
3. Document — Photograph the line-voltage, control plug, and ground connections before disconnecting.
4. Remove — Unplug the control harness, release the blower-housing bolts, slide out the assembly, and transfer the blower wheel and mounting band to the new motor.
5. Install — Mount the new X-13 motor, reseat the blower wheel, reinstall the housing, and reconnect line voltage and the control plug per your photos.
6. Test — Restore power, call for fan/heat/cool, and verify smooth ramp-up and proper airflow.

Signs You Need a Replacement

• Blower will not start or starts intermittently.
• Loud humming, buzzing, or grinding at startup.
• Weak or no airflow despite a thermostat call.
• Motor runs hot or trips on thermal overload.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
