Overview

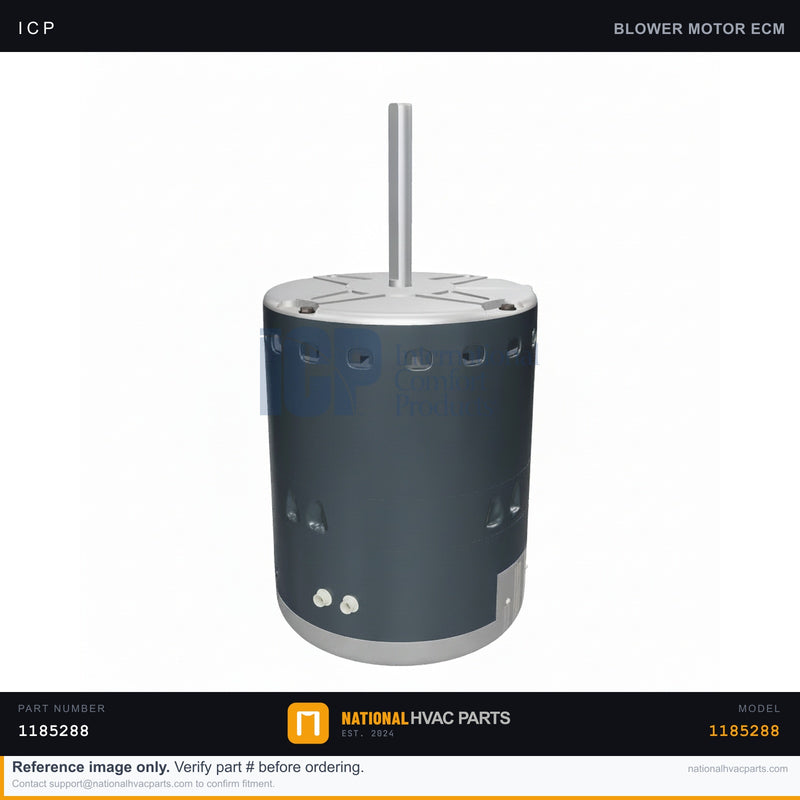

This OEM ECM X-13 motor control module (part number 1185288) is the 1/2 HP variable-speed blower motor controller for the ICP WAXL424A3. The X-13 is a constant-torque ECM that holds a programmed airflow level across changing duct static, delivering quieter, more efficient blower operation than a traditional PSC motor. The control module is the electronic brain bolted to the motor end bell; it receives 24V tap signals from the control board and drives the motor windings. When the module fails, the blower may not start, run only on certain taps, surge, or trip on internal fault — even though the motor itself is mechanically sound.

Specifications

Compatibility

Fits the ICP / Tempstar / Heil WAXL424A3 and matching 1/2 HP X-13 blower assemblies that use the 1185288 control. Confirm the horsepower and that your existing module is an X-13 (5-pin tap connector) before ordering.

Installation Guide

1. Safety First — Disconnect power at the breaker and verify zero voltage with a multimeter.
2. Access — Remove the blower compartment service panel and slide out the blower assembly if needed.
3. Document — Photograph the line-voltage plug and the 24V tap connector wiring before disconnecting.
4. Remove — Unplug both connectors and remove the failed control module from the motor end bell.
5. Install — Seat the new module onto the motor, reconnect the line and tap connectors per your photo.
6. Test — Restore power and verify the blower ramps and runs smoothly on each active tap.

Signs You Need a Replacement

• Blower motor will not start or hums without spinning
• Airflow surges, drops out, or runs only on some taps
• Module trips on fault or resets repeatedly
• Burnt electronics smell or scorched module housing
