What HP motor do I need for my ICP unit?

The correct replacement for ICP model WPG3244060RKC1 — 1/2 HP | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG3244060RKC1 — 1/2 HP | Ships Today.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

ICP

ICP ECM X-13 Blower Motor Control for WPG3244060RKC1 — 1/2 HP | Ships Today

Name: ICP ECM X-13 Blower Motor Control for WPG3244060RKC1 — 1/2 HP | Ships Today
Brand: ICP
SKU: 1185842
Price: 285.94 USD
Availability: InStock

SKU: 1185842 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

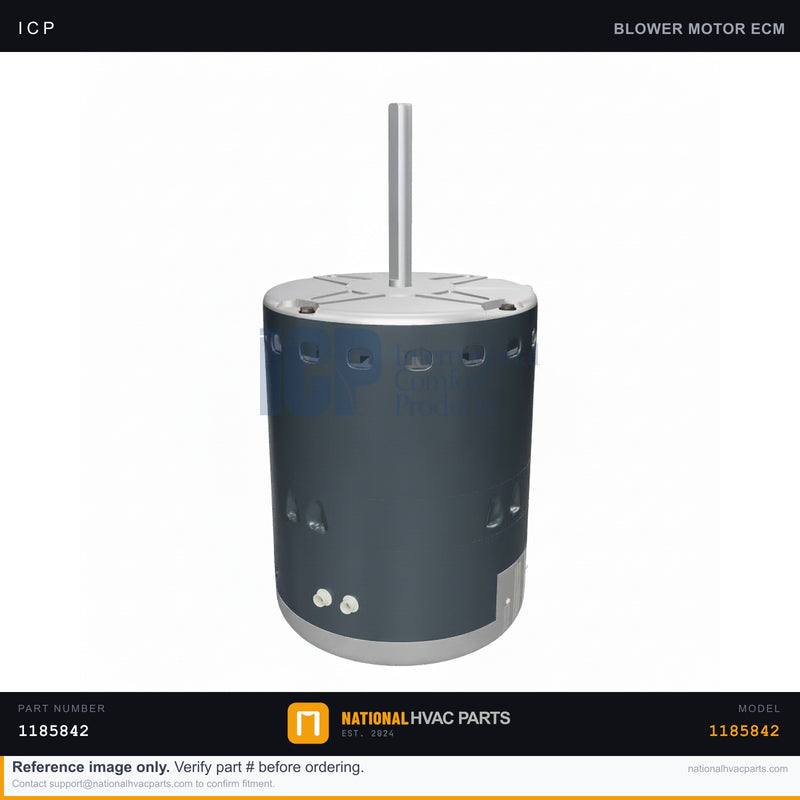

This genuine OEM ECM X-13 motor control (part number 1185842) is the 1/2 HP variable-speed blower motor for the ICP Tempstar Heil WPG3244060RKC1. The X-13 platform is a constant-torque electronically commutated motor that delivers quieter operation, soft starts, and meaningfully better efficiency than a traditional PSC blower. The motor and its programmed control module are supplied as a matched assembly so airflow stays within the unit's engineered specification.

Specifications

Spec	Value
Part Number	1185842
Type	ECM X-13 Constant-Torque Blower Motor
Brand	ICP (Tempstar / Heil)
Horsepower	1/2 HP
Application	Furnace / air handler blower
Control	Integrated X-13 motor control module

Compatibility

A direct-fit replacement for the ICP / Tempstar / Heil WPG3244060RKC1 and other units specifying OEM part 1185842. Confirm horsepower, rotation, and shaft size against the failed motor before installing.

Installation Guide

Safety First — Disconnect power and verify zero voltage with a multimeter before touching the blower assembly.
Access — Remove the blower compartment panel and pull the blower assembly if needed for clearance.
Document — Photograph the motor harness, tap connections, and blower wheel set screw position.
Remove — Mark the wheel position, loosen the set screw, separate the old motor, and unplug the X-13 control harness.
Install — Mount the new motor, reset the blower wheel to its marked depth, and reconnect the harness exactly per your photos.
Test — Restore power and confirm the blower ramps up smoothly and delivers proper airflow on each speed tap.

Signs You Need a Replacement

Blower will not start or starts intermittently
Weak, surging, or no airflow at the registers
Overheating, burning smell, or repeated thermal cutouts
Loud bearing noise or grinding from the blower

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP ECM X-13 Blower Motor Contro...

$285.94

Frequently Asked Questions

Does this Fan Motor fit my ICP WPG3244060RKC1 — 1/2 HP | Ships Today?

Yes. This is the factory-specified OEM fan motor for the ICP WPG3244060RKC1 — 1/2 HP | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my ICP WPG3244060RKC1 — 1/2 HP | Ships Today?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
