What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WTA3482000RKA1 — 55+10 MFD 370V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WTA3482000RKA1 — 55+10 MFD 370V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

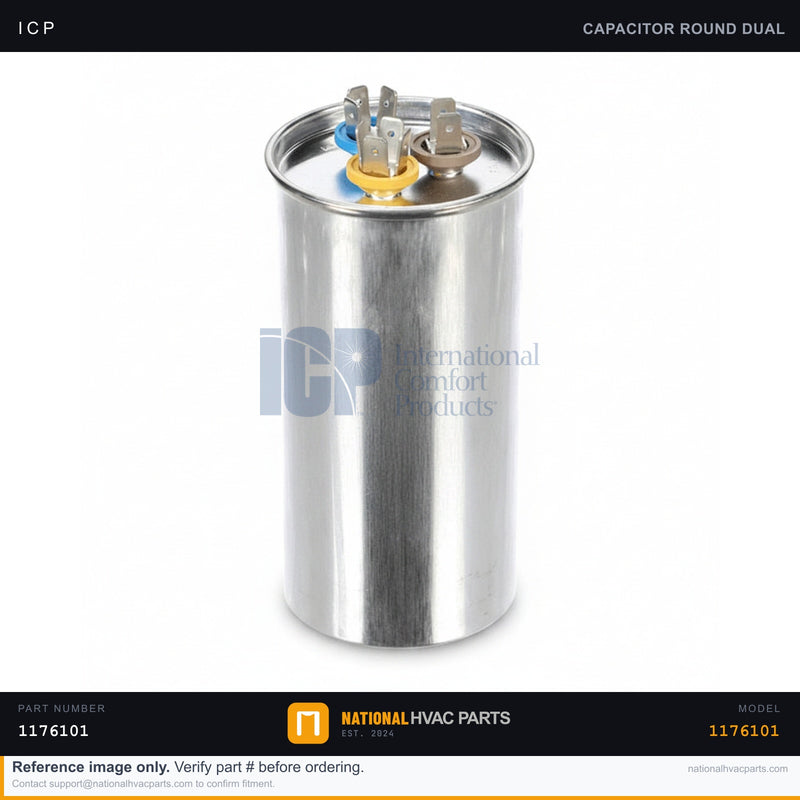

ICP Dual Run Capacitor for WTA3482000RKA1 — 55+10 MFD 370V | Ships Today

Name: ICP Dual Run Capacitor for WTA3482000RKA1 — 55+10 MFD 370V | Ships Today
Brand: ICP
SKU: 1176101
Price: 35.04 USD
Availability: InStock

SKU: 1176101 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM round dual-run capacitor (part number 1176101) is rated 55+10 MFD at 370 volts and is the factory-specified start/run component for the ICP WTA3482000RKA1 condensing unit. A dual-run capacitor supplies a phase-shifted current to both the compressor (the 55 MFD side) and the condenser fan motor (the 10 MFD side) so both motors can start under load and run efficiently. As the capacitor degrades it loses microfarad capacity, robbing the motors of starting torque. Typical failure symptoms include a humming compressor that won't start, a slow or stalled condenser fan, breaker trips, hard starting in hot weather, and a bulged or leaking capacitor can. A fresh capacitor is a fast, low-cost fix that restores full cooling performance.

Specifications

Spec	Value
Part Number	1176101
Type	Dual Run, Round
Brand	ICP
Capacitance	55+10 MFD
Voltage	370V
Fits Model	WTA3482000RKA1

Compatibility

Engineered for the ICP / Tempstar / Heil WTA3482000RKA1 air conditioning condenser. The 55+10 MFD 370V rating must match your unit's original capacitor — verify the MFD and voltage stamped on the old can before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and breaker, then verify zero voltage with a multimeter. Discharge the old capacitor across its terminals with an insulated resistor before handling.
Access — Remove the condenser service panel.
Document — Photograph all wire connections (HERM, FAN, C) before disconnecting.
Remove — Pull the spade connectors, loosen the mounting strap, and lift out the old capacitor.
Install — Mount the new capacitor, secure the strap, and reconnect each wire to its matching terminal per your photo.
Test — Restore power and verify the compressor and condenser fan start promptly and run smoothly.

Signs You Need a Replacement

Compressor hums but will not start
Condenser fan spins slowly or needs a manual push
AC trips the breaker or hard-starts on hot days
Bulged, swollen, or leaking capacitor top

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor for WTA34...

$35.04

Frequently Asked Questions

Does this Capacitor fit my ICP WTA3482000RKA1 — 55+10 MFD 370V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WTA3482000RKA1 — 55+10 MFD 370V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WTA3482000RKA1 — 55+10 MFD 370V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
