What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WPG3482130RKB1 - 55+10 MFD 370V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG3482130RKB1 - 55+10 MFD 370V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

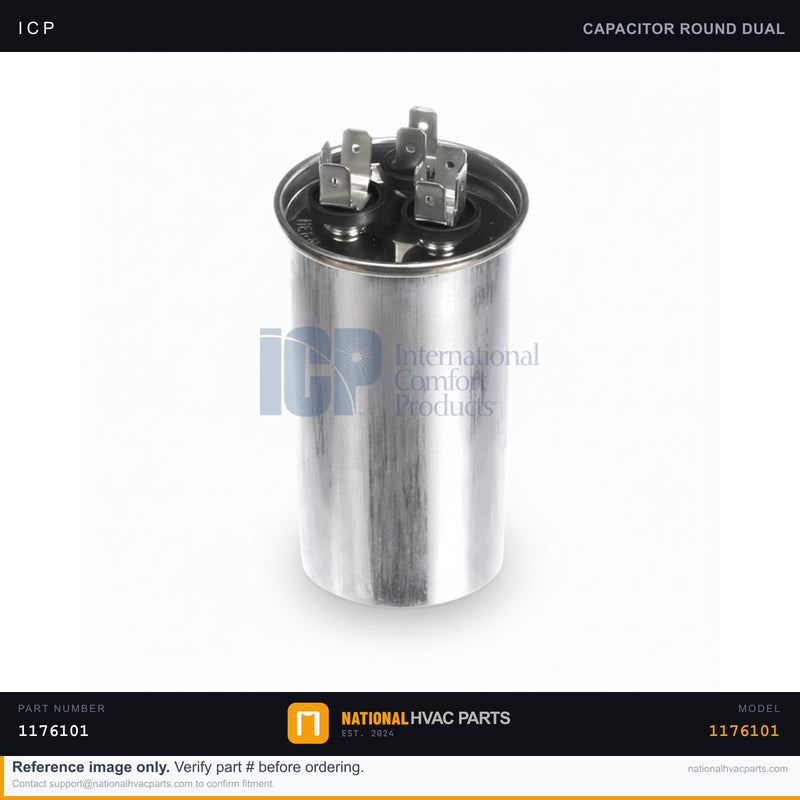

ICP Dual Run Capacitor for WPG3482130RKB1 - 55+10 MFD 370V | Ships Today

Name: ICP Dual Run Capacitor for WPG3482130RKB1 - 55+10 MFD 370V | Ships Today
Brand: ICP
SKU: 1176101
Price: 33.80 USD
Availability: InStock

SKU: 1176101 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM dual run capacitor provides the starting torque and continuous running phase shift for both the compressor and the condenser fan motor on your ICP WPG3482130RKB1 unit. Rated at 55+10 MFD and 370V, the larger 55 MFD terminal (HERM) feeds the compressor while the 10 MFD terminal (FAN) feeds the condenser fan motor, with a shared common (C). The kit ships with capacitor 1176101 (CAP RN RND 370V 55+10 MFD) plus the matching round mounting clamps (1171552 oval clamp and 1064218 round clamp) so you can secure it cleanly. A weak or failed run capacitor is the single most common HVAC service call: the compressor or fan hums but will not start, runs hot, draws high amperage, or trips on overload.

Specifications

Spec	Value
Part Number	1176101 (capacitor), 1171552 / 1064218 (clamps)
Type	Dual run, round
Brand	ICP
Capacitance	55+10 MFD
Voltage	370V
Terminals	HERM / FAN / C
Fitment	OEM replacement

Compatibility

Designed for the ICP / Tempstar / Heil / Comfortmaker WPG3482130RKB1 and related condensing units calling for a 55+10 MFD, 370V round dual run capacitor. Confirm both microfarad values and the voltage rating on your existing capacitor label before ordering; a 440V capacitor with the same MFD will also work, but never substitute different MFD values.

Installation Guide

Safety First - Disconnect power and verify zero voltage, then discharge the old capacitor across its terminals with an insulated resistor before handling.
Access - Remove the service panel on the condensing unit.
Document - Photograph the HERM, FAN, and C wiring before disconnecting.
Remove - Pull the spade connectors, loosen the mounting clamp, and lift out the old capacitor.
Install - Secure the new capacitor with the included clamp and reconnect each wire to the matching HERM/FAN/C terminal per your photo.
Test - Restore power and verify the compressor and condenser fan start and run normally.

Signs You Need a Replacement

Compressor or condenser fan hums but will not start
Bulged, leaking, or burst capacitor top
High amp draw, short cycling, or breaker trips
Out-of-tolerance MFD reading on a capacitance meter

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor for WPG34...

$33.80

Frequently Asked Questions

Does this Capacitor fit my ICP WPG3482130RKB1 - 55+10 MFD 370V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WPG3482130RKB1 - 55+10 MFD 370V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WPG3482130RKB1 - 55+10 MFD 370V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
