What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

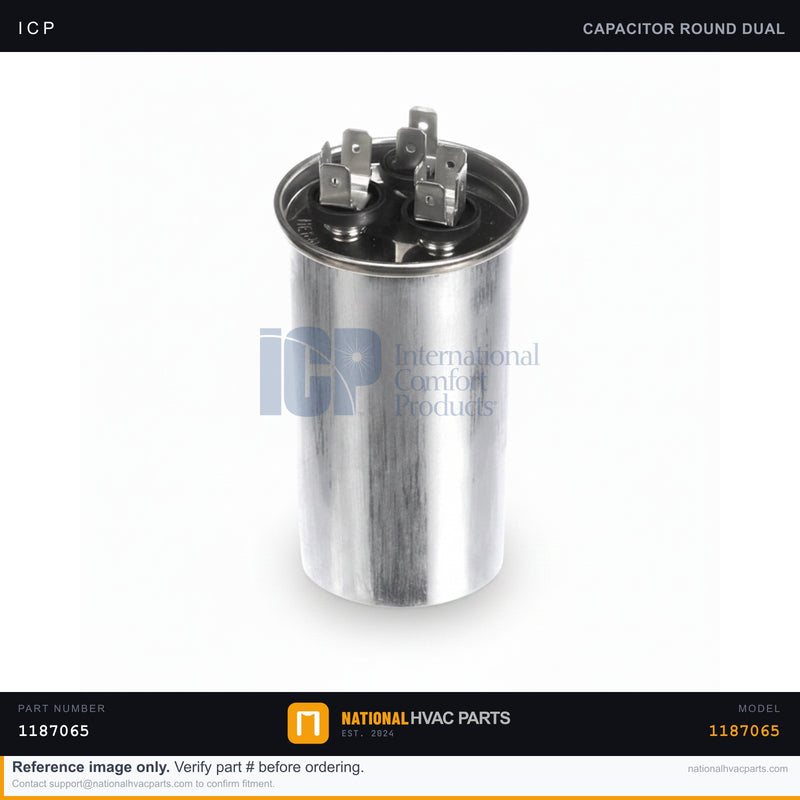

ICP Dual Run Capacitor for WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today

Name: ICP Dual Run Capacitor for WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today
Brand: ICP
SKU: 1187065
Price: 41.60 USD
Availability: InStock

SKU: 1187065 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 70+10 MFD, 440V dual run capacitor provides the start and run torque for both the compressor and condenser fan motor on the ICP / Tempstar / Heil WJH460000KTP0A1. A dual run capacitor stores and releases electrical energy to keep both motors spinning efficiently after startup — the 70 MFD side serves the compressor (HERM terminal) and the 10 MFD side serves the fan motor (FAN terminal), sharing a common (C) terminal. Capacitors are one of the most common HVAC failure points: heat, age, and voltage surges cause them to lose capacitance or bulge and vent. A weak capacitor makes the compressor or fan hard-start, hum, trip the breaker, or fail to start at all. Installing the correct 440V-rated OEM capacitor restores full motor performance and protects the more expensive compressor from overheating.

Specifications

Spec	Value
Part Number	1187065
Type	Dual Run Capacitor
Brand	ICP (Tempstar / Heil)
Capacitance	70 + 10 MFD
Voltage Rating	440V
Terminals	HERM / FAN / C

Compatibility

Factory-spec replacement for the ICP / Tempstar / Heil WJH460000KTP0A1 condenser. A 440V-rated capacitor is also a safe upgrade for units originally fitted with a 370V part of the same MFD values. Verify both MFD ratings (70 and 10) match before installing.

Installation Guide

Safety First — Disconnect power, then discharge and verify zero voltage across the capacitor terminals with a multimeter.
Access — Remove the condenser service panel.
Document — Photograph the HERM, FAN, and C wire connections before disconnecting.
Remove — Pull the spade connectors, loosen the mounting strap, and lift out the old capacitor.
Install — Secure the new capacitor in the strap and reconnect each wire to its matching HERM / FAN / C terminal per your photo.
Test — Restore power and confirm the compressor and fan start cleanly without humming or hesitation.

Signs You Need a Replacement

Compressor or fan motor hums but will not start
Bulged, leaking, or vented capacitor top
AC trips the breaker on startup
Measured capacitance well below the 70 or 10 MFD rating

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor for WJH46...

$41.60

Frequently Asked Questions

Does this Capacitor fit my ICP WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WJH460000KTP0A1 — 70+10 MFD 440V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
