What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

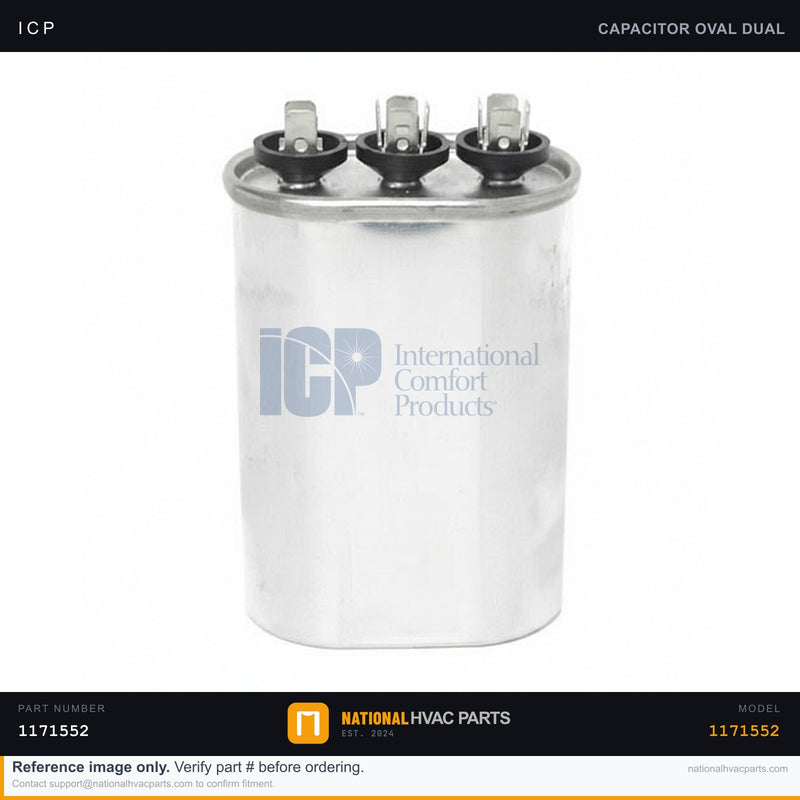

ICP Dual Run Capacitor for RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today

Name: ICP Dual Run Capacitor for RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today
Brand: ICP
SKU: 1171552
Price: 32.44 USD
Availability: InStock

SKU: 1171552 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM dual run capacitor (part #1171552) is the oval-style 45+5 MFD, 440V capacitor used in the ICP/Tempstar/Heil RHS060L0XA0AAAA 5-ton heat pump condensing unit. A run capacitor stores and releases electrical energy to give both the compressor and the condenser fan motor the torque they need to start and run efficiently. The combined 45 MFD (compressor) and 5 MFD (fan) ratings are housed in a single oval can and secured with the included capacitor clamp. When this part weakens, the system draws excessive amperage, struggles to start, or fails to cool at all. Replacing a tired capacitor is one of the most common and cost-effective HVAC repairs.

Specifications

Spec	Value
Part Number	1171552
Type	Dual Run, Oval
Brand	ICP (Tempstar / Heil / Comfortmaker)
Capacitance	45 + 5 MFD
Voltage Rating	440V (compatible with 370V applications)
Terminals	HERM / FAN / C
Mounting	Oval clamp included

Compatibility

Designed for the ICP/Tempstar/Heil RHS060L0XA0AAAA condensing unit and other 5-ton ICP-family systems that specify a 45+5 MFD oval capacitor. Always confirm the MFD and voltage rating against your old capacitor's label before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter. Capacitors hold a charge — discharge across the terminals with an insulated resistor before touching.
Access — Remove the condenser service panel.
Document — Photograph all wires on the HERM, FAN, and C terminals before disconnecting.
Remove — Pull the spade connectors, loosen the mounting clamp, and lift out the old oval capacitor.
Install — Secure the new capacitor in the clamp and reconnect each wire to the matching terminal per your photo.
Test — Restore power and confirm the compressor and fan start smoothly and draw normal amperage.

Signs You Need a Replacement

Compressor or fan hums but won't start
Unit trips the breaker or runs hot
Bulging, leaking, or swollen capacitor top
Out-of-spec MFD reading on a capacitor meter

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor for RHS06...

$32.44

Frequently Asked Questions

Does this Capacitor fit my ICP RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP RHS060L0XA0AAAA — 45+5 MFD 440V Oval | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
