What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WTH3602000RKA1 | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WTH3602000RKA1 | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

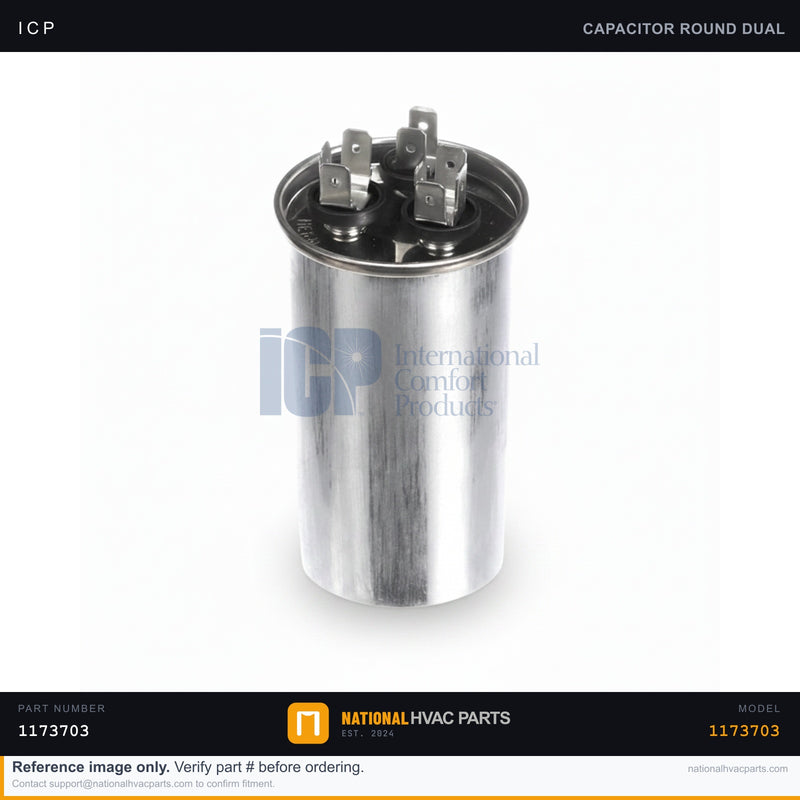

ICP Dual Run Capacitor 80+10 MFD 370V for WTH3602000RKA1 | Ships Today

Name: ICP Dual Run Capacitor 80+10 MFD 370V for WTH3602000RKA1 | Ships Today
Brand: ICP
SKU: 1173703
Price: 36.34 USD
Availability: InStock

SKU: 1173703 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM dual run capacitor (part 1173703) provides the running torque for both the compressor and the condenser fan motor in the ICP / Heil / Tempstar WTH3602000RKA1 heat pump. Rated at 80+10 MFD and 370V in a round can, the 80 MFD section supports the compressor while the 10 MFD section drives the outdoor fan. A weak or failed run capacitor is one of the most common no-cooling / no-heat-pump callbacks: the compressor hums but won't start, the outdoor fan stalls, or the unit trips on overload. Replacing it restores full starting and running performance.

Specifications

Spec	Value
OEM Part Number	1173703
Type	Dual Run Capacitor (Round)
Brand	ICP / Heil / Tempstar
Capacitance	80 + 10 MFD
Voltage Rating	370V
Terminals	HERM / FAN / C
Fit	OEM Direct Replacement

Compatibility

Direct OEM replacement for the ICP / Heil / Tempstar WTH3602000RKA1 heat pump and other ICP-family condensing units calling for an 80+10 MFD, 370V round dual run capacitor. A 440V capacitor of the same MFD may be used as an upgrade; never reduce the MFD value.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and discharge the capacitor across its terminals before handling.
Access — Remove the condenser control-box service panel.
Document — Photograph the HERM, FAN, and C terminal wiring before disconnecting.
Remove — Pull the spade connectors, loosen the mounting strap, and lift out the old capacitor.
Install — Secure the new capacitor and reconnect HERM, FAN, and C per your photo.
Test — Restore power and verify the compressor and outdoor fan start and run smoothly.

Signs You Need a Replacement

Compressor hums or buzzes but will not start
Outdoor fan spins slowly or only after a manual push
Bulged, leaking, or domed capacitor top
Repeated breaker trips or hard-starting on hot days

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor 80+10 MFD...

$36.34

Frequently Asked Questions

Does this Capacitor fit my ICP WTH3602000RKA1 | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WTH3602000RKA1 | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WTH3602000RKA1 | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
