What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WJH360000K000A1 — 370V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WJH360000K000A1 — 370V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

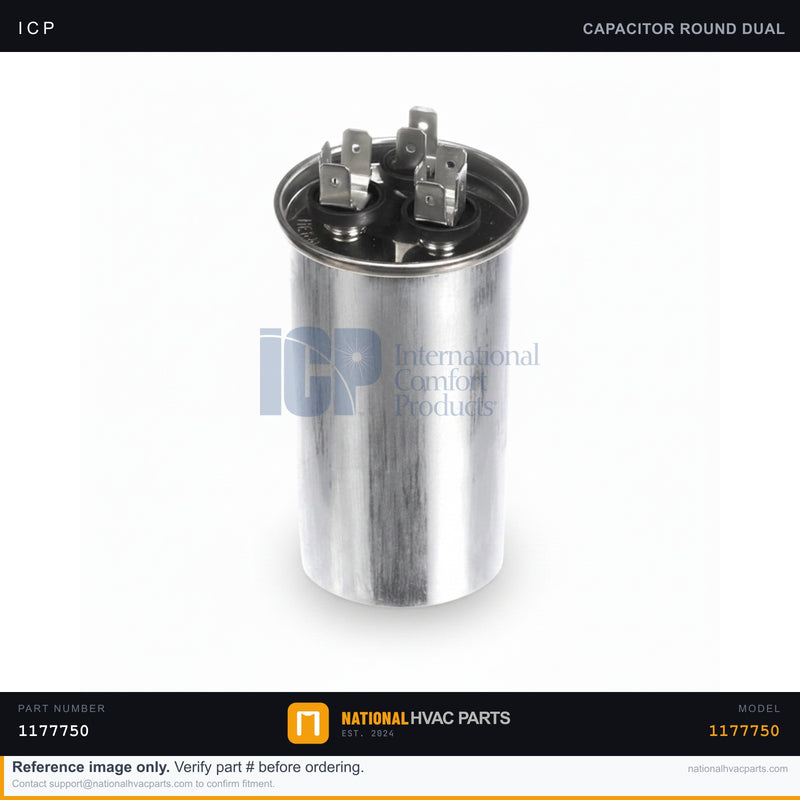

ICP Dual Run Capacitor 70+10 MFD for WJH360000K000A1 — 370V | Ships Today

Name: ICP Dual Run Capacitor 70+10 MFD for WJH360000K000A1 — 370V | Ships Today
Brand: ICP
SKU: 1177750
Price: 37.64 USD
Availability: InStock

SKU: 1177750 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM dual run capacitor (part #1177750) is a round 70+10 MFD, 370V unit that provides the starting and running torque for both the compressor and the outdoor fan motor on ICP, Heil, and Tempstar units like the WJH360000K000A1. The 70 MFD side serves the compressor (HERM terminal) and the 10 MFD side serves the condenser fan motor (FAN terminal), sharing a common (C) terminal. A dual run capacitor is one of the most common HVAC failure points: heat, age, and voltage stress cause it to lose capacitance, bulge, or short out. When it weakens, the compressor or fan struggles to start, draws high amperage, and can overheat or trip the breaker.

Specifications

Spec	Value
Part Number	1177750
Type	Dual Run Capacitor (Round)
Brand	ICP / Heil / Tempstar
Capacitance	70 + 10 MFD
Voltage	370V
Terminals	HERM / FAN / C
Fitment	OEM Replacement

Compatibility

Direct OEM replacement for the ICP/Heil/Tempstar WJH360000K000A1 and other WJH360000 series condensers/heat pumps specifying a 70+10 MFD 370V round dual run capacitor. A higher-voltage 440V capacitor of the same MFD can also be used. Always match the microfarad (MFD) values exactly.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then discharge the capacitor across its terminals with an insulated screwdriver and verify zero voltage with a multimeter.
Access — Remove the condensing unit electrical access panel.
Document — Photograph the wiring on the HERM, FAN, and C terminals before disconnecting.
Remove — Pull the spade connectors, loosen the mounting strap, and remove the old capacitor.
Install — Mount the new capacitor in the strap and reconnect HERM, FAN, and C wires exactly per your photo.
Test — Restore power, call for cooling, and verify the compressor and fan start immediately and run smoothly.

Signs You Need a Replacement

Compressor or fan hums but won't start (hard start)
Bulging, swollen, or leaking capacitor top
Out-of-spec MFD reading on a capacitor meter
Outdoor fan needs a push to start spinning

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor 70+10 MFD...

$37.64

Frequently Asked Questions

Does this Capacitor fit my ICP WJH360000K000A1 — 370V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WJH360000K000A1 — 370V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WJH360000K000A1 — 370V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
