What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WJA460000KTP0A1 — 440V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WJA460000KTP0A1 — 440V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

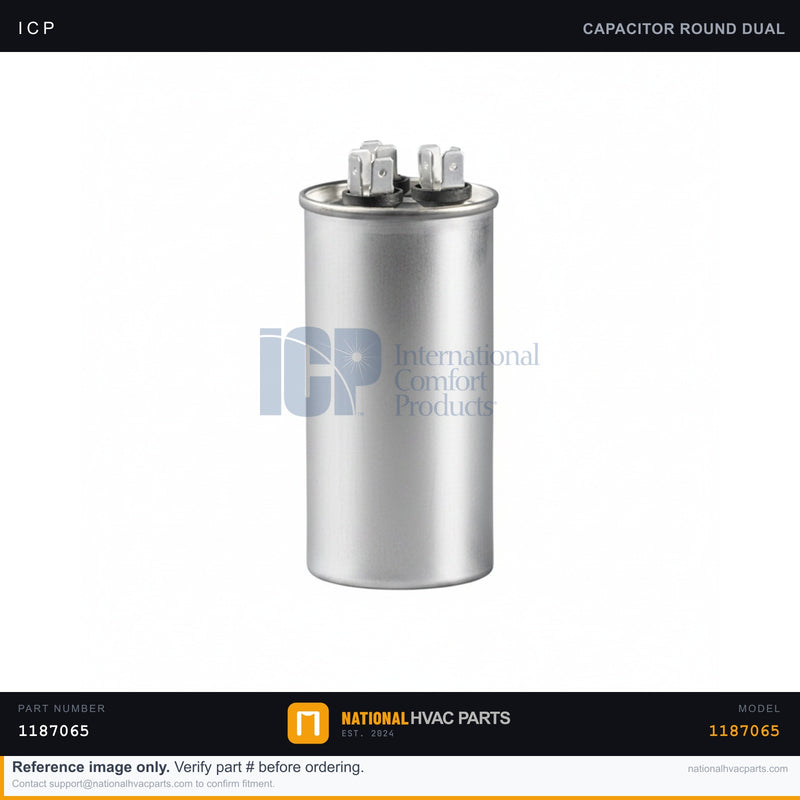

ICP Dual Run Capacitor 70+10 MFD for WJA460000KTP0A1 — 440V | Ships Today

Name: ICP Dual Run Capacitor 70+10 MFD for WJA460000KTP0A1 — 440V | Ships Today
Brand: ICP
SKU: 1187065
Price: 31.20 USD
Availability: InStock

SKU: 1187065 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM dual run capacitor (part 1187065) is a direct replacement for ICP, Tempstar, and Heil model WJA460000KTP0A1. A dual run capacitor stores and delivers the phase-shifted current that both the compressor and the condenser fan motor need to start and run efficiently. The 70 MFD side serves the compressor (HERM terminal) and the 10 MFD side serves the condenser fan motor (FAN terminal), with a common (C) terminal shared by both, all rated at 440V. When a run capacitor weakens or fails, the compressor or fan motor may hum but fail to start, draw high amperage, overheat, or short-cycle on the overload — one of the most common causes of a no-cooling call.

Specifications

Spec	Value
Part Number	1187065
Type	Dual Run Capacitor
Brand	ICP / Tempstar / Heil
Capacitance	70 + 10 MFD
Voltage Rating	440 V
Terminals	HERM / FAN / C
Fitment	OEM

Compatibility

Engineered for ICP, Tempstar, Heil, and Comfortmaker model WJA460000KTP0A1. A 440V capacitor safely replaces a 370V unit of the same MFD rating, but the microfarad values (70+10 MFD) must match exactly. Confirm your existing capacitor reads 70+10 MFD before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter. Discharge the capacitor across its terminals with an insulated resistor before touching.
Access — Remove the condenser service panel.
Document — Photograph the HERM, FAN, and C wire connections before disconnecting.
Remove — Pull the spade connectors and loosen the mounting strap to remove the old capacitor.
Install — Secure the new capacitor and reconnect each lead to its matching terminal per your photo.
Test — Restore power and verify the compressor and fan motor start smoothly.

Signs You Need a Replacement

Compressor or fan motor hums but won't start
Bulging, leaking, or domed capacitor top
Capacitor reads out of range or open on a meter
Frequent overload trips or warm-air-only cooling

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor 70+10 MFD...

$31.20

Frequently Asked Questions

Does this Capacitor fit my ICP WJA460000KTP0A1 — 440V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WJA460000KTP0A1 — 440V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WJA460000KTP0A1 — 440V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.
