What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model WJA360000KTP0A2 — Round | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WJA360000KTP0A2 — Round | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

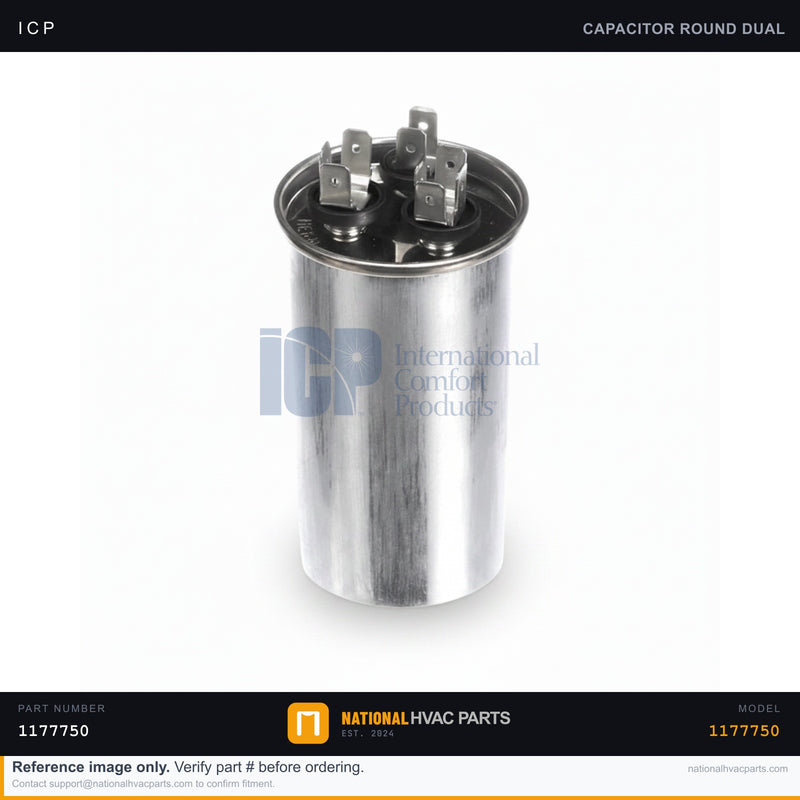

ICP Dual Run Capacitor 70+10 MFD 370V for WJA360000KTP0A2 — Round | Ships Today

Name: ICP Dual Run Capacitor 70+10 MFD 370V for WJA360000KTP0A2 — Round | Ships Today
Brand: ICP
SKU: 1177750
Price: 32.44 USD
Availability: InStock

SKU: 1177750 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM dual run capacitor (part #1177750) is the genuine replacement for ICP/Tempstar/Heil model WJA360000KTP0A2. A dual run capacitor provides the constant phase shift the compressor and condenser fan motor need to start and run efficiently. The 70 MFD section feeds the compressor (HERM terminal) while the 10 MFD section drives the condenser fan motor (FAN terminal), both rated at 370 volts. When a capacitor weakens or fails, the compressor and fan draw excessive current and overheat — the most common cause of a no-cooling call. Typical failure symptoms include a humming compressor that won't start, a condenser fan that needs a manual spin to turn, a bulged or leaking can, and intermittent breaker trips on hot days.

Specifications

Spec	Value
Part Number	1177750
Type	Dual Run, Round
Brand	ICP (Tempstar / Heil)
Capacitance	70 + 10 MFD
Voltage	370V
Terminals	HERM / FAN / C

Compatibility

Directly fits ICP, Tempstar, Heil, Comfortmaker, and Arcoaire condensing units using OEM part 1177750, including model WJA360000KTP0A2. Always confirm the MFD rating and voltage on your existing capacitor before ordering — a 370V capacitor may also be used to replace a 440V unit of the same MFD, but never the reverse.

Installation Guide

Safety First — Disconnect power at the condenser disconnect and breaker, then verify zero voltage with a multimeter. Capacitors store a lethal charge — discharge across the terminals with an insulated screwdriver.
Access — Remove the condenser service panel.
Document — Photograph all wire positions (HERM, FAN, C) before disconnecting.
Remove — Pull the spade connectors, loosen the mounting strap, and remove the old capacitor.
Install — Secure the new capacitor in the strap and reconnect each wire to its matching terminal per your photo.
Test — Restore power and confirm the compressor and condenser fan start immediately and run smoothly.

Signs You Need a Replacement

Compressor hums but won't start, or trips the breaker
Condenser fan won't spin until pushed by hand
Bulged, swollen, or leaking capacitor can
Measured MFD reads outside ±6% of the rated 70+10 value

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor 70+10 MFD...

$32.44

Frequently Asked Questions

Does this Capacitor fit my ICP WJA360000KTP0A2 — Round | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP WJA360000KTP0A2 — Round | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP WJA360000KTP0A2 — Round | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
