What MFD capacitor do I need for my ICP AC?

The correct replacement for ICP model RGS240HSFA0AAAA — 440V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number RGS240HSFA0AAAA — 440V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

ICP

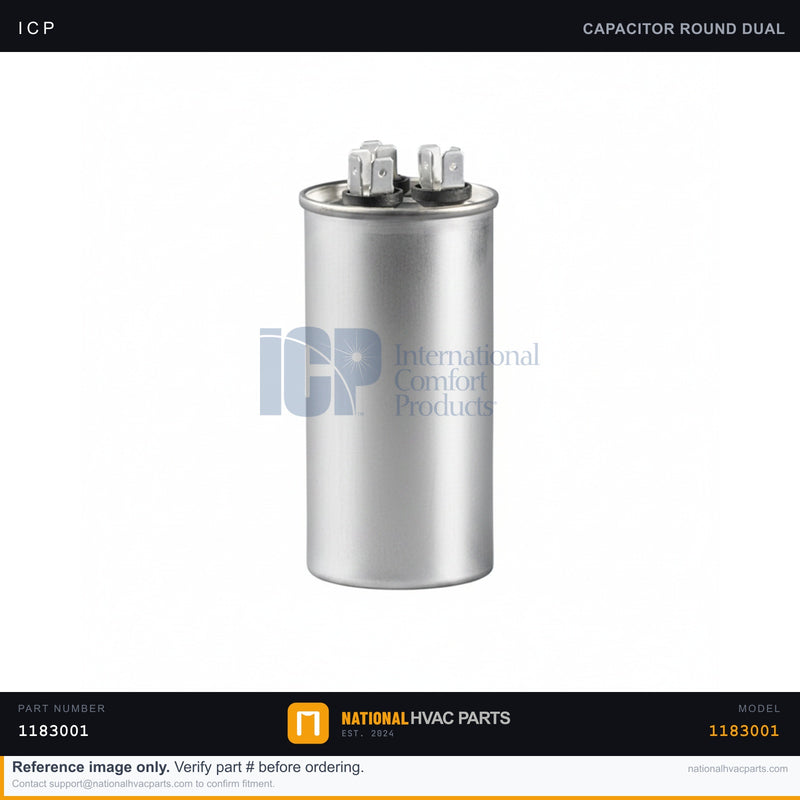

ICP Dual Run Capacitor 45+5 MFD for RGS240HSFA0AAAA — 440V | Ships Today

Name: ICP Dual Run Capacitor 45+5 MFD for RGS240HSFA0AAAA — 440V | Ships Today
Brand: ICP
SKU: 1183001
Price: 35.04 USD
Availability: InStock

SKU: 1183001 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is the OEM dual run capacitor (capacitor plate assembly, OEM 1183001) for the ICP / Tempstar / Heil RGS240HSFA0AAAA packaged unit. A dual run capacitor stores and releases energy to keep both the compressor and the condenser fan motor running efficiently after start-up. Rated at 45+5 MFD, 440V, it serves the compressor (HERM terminal) and fan (FAN terminal) from a single component. A weak or failed capacitor is one of the most common causes of a no-cool call — the compressor may hum and trip on overload, or the condenser fan may stall.

Specifications

Spec	Value
OEM Part Number	1183001 (Capacitor Plate)
Type	Dual Run Capacitor
Brand	ICP / Tempstar / Heil
Capacitance	45 + 5 MFD
Voltage	440 VAC
Tolerance	±6%

Compatibility

Designed for the ICP RGS240HSFA0AAAA and compatible across many ICP-family condensing units and packaged systems branded Tempstar, Heil, Comfortmaker, and Arcoaire. A 440V capacitor safely replaces a 370V capacitor of the same MFD value. Verify the MFD rating printed on your existing capacitor before installing.

Installation Guide

Safety First — Disconnect power and verify zero voltage; discharge the capacitor across its terminals with an insulated resistor before touching.
Access — Remove the condenser/control service panel.
Document — Photograph the HERM, FAN, and COM wiring before disconnecting.
Remove — Pull the spade terminals, loosen the mounting strap, and lift out the old capacitor.
Install — Secure the new capacitor and reconnect HERM, FAN, and COM per your photo.
Test — Restore power and confirm the compressor and fan start cleanly without hum or delay.

Signs You Need a Replacement

Compressor hums but won't start, or trips the breaker
Condenser fan won't spin until pushed by hand
Bulged, leaking, or swollen capacitor top
Capacitance reads out of tolerance on a meter

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Dual Run Capacitor 45+5 MFD ...

$35.04

Frequently Asked Questions

Does this Capacitor fit my ICP RGS240HSFA0AAAA — 440V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the ICP RGS240HSFA0AAAA — 440V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my ICP RGS240HSFA0AAAA — 440V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
