What are the specs for this Control Board?

The correct replacement for ICP model WPH3244000RKC1 — Heat Pump | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPH3244000RKC1 — Heat Pump | Ships Today.

ICP

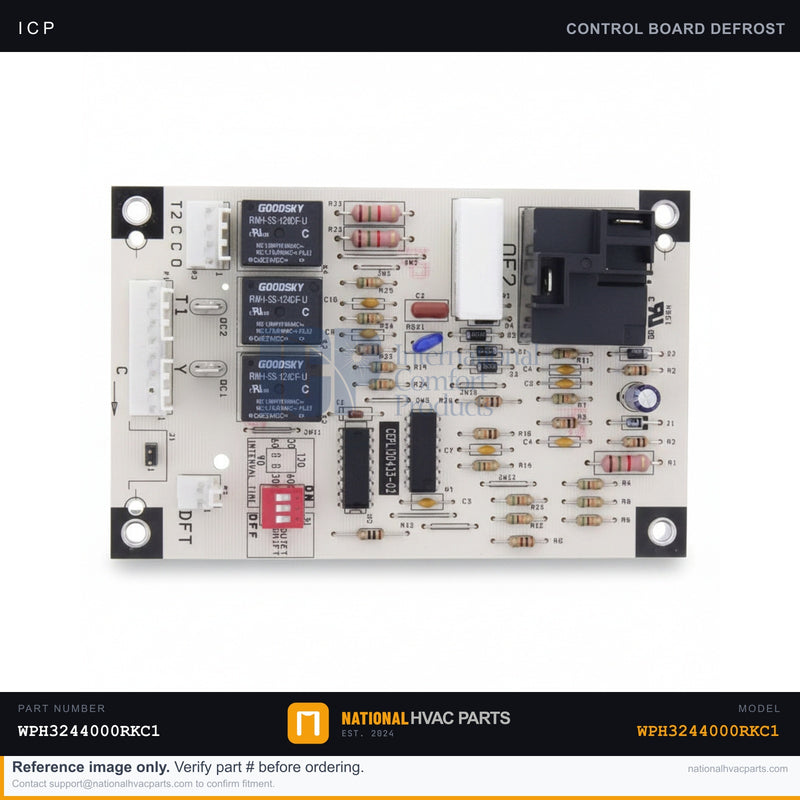

ICP Defrost Control Board for WPH3244000RKC1 — Heat Pump | Ships Today

Name: ICP Defrost Control Board for WPH3244000RKC1 — Heat Pump | Ships Today
Brand: ICP
SKU: WPH3244000RKC1
Price: 180.70 USD
Availability: InStock

SKU: WPH3244000RKC1 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM circuit control board (part 1178001) is the brain of your ICP / Tempstar / Heil WPH3244000RKC1 heat pump. It manages defrost timing, sequences the reversing valve, controls compressor and fan operation, and coordinates the 24V control circuit. A failed board causes erratic behavior — units stuck in defrost, ice build-up on the outdoor coil, a compressor that won't start, or a reversing valve that won't switch between heating and cooling. Specs: 24V control logic, OEM defrost board.

Specifications

Spec	Value
Part Number	1178001
Type	Defrost / Control Circuit Board
Brand	ICP (Tempstar / Heil)
Control Voltage	24V
Fitment	OEM

Compatibility

Engineered for the ICP WPH3244000RKC1 heat pump and compatible across ICP-family units (Tempstar, Heil, Comfortmaker) using this control board revision.

Installation Guide

Safety First — Disconnect power at the breaker and verify zero voltage with a multimeter.
Access — Remove the control panel cover to expose the board.
Document — Photograph every connector and wire position before disconnecting.
Remove — Unplug the harnesses and unclip or unscrew the old board from its standoffs.
Install — Mount the new board and reconnect each harness exactly per your photo.
Test — Restore power and run a heating and cooling cycle to verify defrost and reversing-valve operation.

Signs You Need a Replacement

Outdoor coil ices over / unit stuck in defrost
Reversing valve won't switch heat to cool
Compressor or fan won't start on a call
Visible burn marks or corrosion on the board

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Defrost Control Board for WP...

$180.70

Frequently Asked Questions

Does this Control Board fit my ICP WPH3244000RKC1 — Heat Pump | Ships Today?

Yes. This is the factory-specified OEM control board for the ICP WPH3244000RKC1 — Heat Pump | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my ICP WPH3244000RKC1 — Heat Pump | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
