ICP Defrost Control Board for WCH5304GKA100 — Heat Pump | Ships Today

Name: ICP Defrost Control Board for WCH5304GKA100 — Heat Pump | Ships Today
Brand: ICP
SKU: 1173636
Price: 168.94 USD
Availability: InStock

SKU: 1173636 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

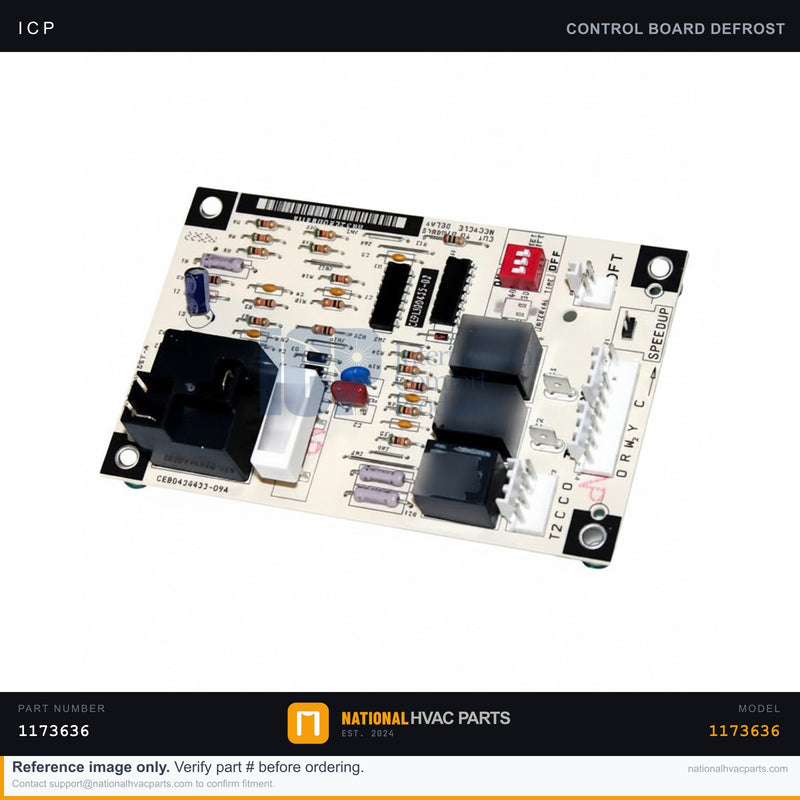

This OEM defrost control board (part number 1173636) fits the ICP Tempstar Heil heat pump model WCH5304GKA100. In heat-pump mode the board monitors coil temperature and run time to initiate and terminate the defrost cycle, switching the reversing valve and controlling the condenser fan so frost is cleared from the outdoor coil. A failed board commonly causes a coil that ices over, a heat pump stuck in defrost, no defrost at all, or erratic fan and reversing-valve behavior.

Specifications

Spec	Value
Part Number	1173636
Type	Defrost Control Board
Brand	ICP (Tempstar / Heil)
Application	Heat Pump
Fitment	OEM

Compatibility

Direct-fit replacement for the ICP Tempstar Heil heat pump model WCH5304GKA100 and related WCH5304 series outdoor units. Verify the board part number and connector layout against your existing board before installing.

Installation Guide

Safety First — Disconnect power at the breaker and verify zero voltage with a multimeter.
Access — Remove the control compartment service panel.
Document — Photograph every connector and wire position before disconnecting.
Remove — Unplug each harness, release the standoffs, and lift out the old board.
Install — Seat the new board on the standoffs and reconnect each harness per your photo.
Test — Restore power, run a defrost cycle, and confirm proper reversing-valve and fan operation.

Signs You Need a Replacement

Outdoor coil ices over and does not clear.
Heat pump stuck in or never enters defrost.
Reversing valve or condenser fan behaves erratically.
No response from the board on a defrost call.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
