Overview

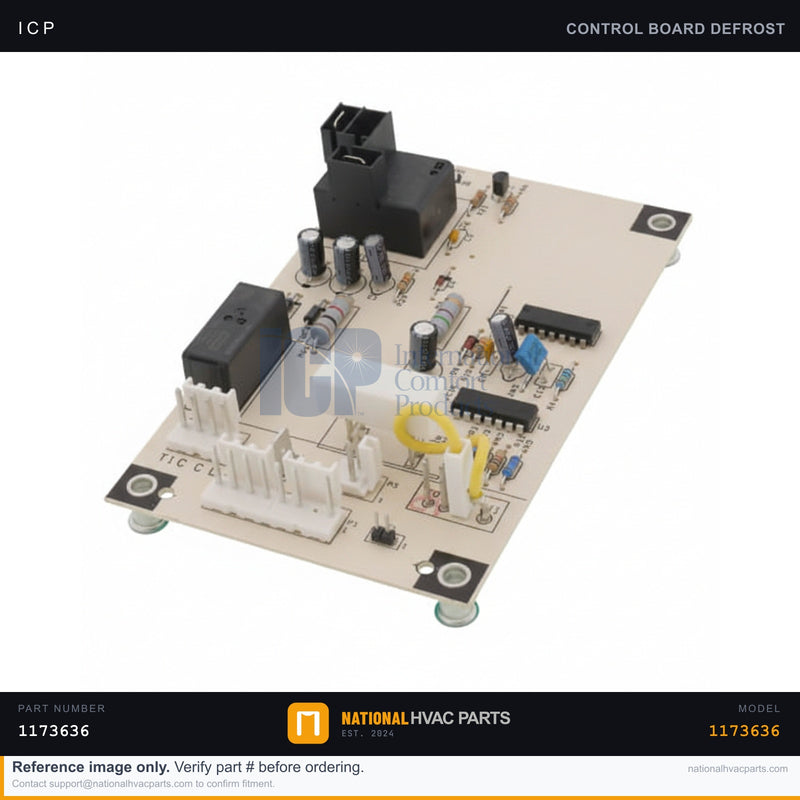

This OEM defrost control board (part number 1173636) governs the defrost cycle on your ICP / Heil / Tempstar WCH5244GKA100 heat pump. It monitors coil temperature and accumulated run time, then commands the unit into and out of defrost so ice cannot build on the outdoor coil during heating. The board coordinates the reversing valve, compressor contactor, outdoor fan, and auxiliary heat hand-off. A failed defrost board lets the coil ice over, traps the unit in continuous defrost, causes short-cycling, or prevents proper heating/cooling switching. This factory-specification board restores correct 24V control logic and defrost timing.

Specifications

Spec	Value
Part Number	1173636
Type	Defrost Control Board
Brand	ICP (Heil / Tempstar)
Control Voltage	24V
Application	Heat Pump Defrost Control
Fit	OEM Replacement

Compatibility

Engineered for the ICP / Heil / Tempstar WCH5244GKA100 heat pump and other ICP-family condensing units that originally shipped with defrost control board 1173636. Confirm your existing board's part number before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and verify zero voltage with a multimeter.
Access — Remove the unit's electrical service panel.
Document — Photograph every wire and terminal on the existing board before disconnecting.
Remove — Label and unplug the low-voltage and line connections, then unscrew the old board from its standoffs.
Install — Mount the new board on the same standoffs and reconnect every wire exactly per your photo.
Test — Restore power, place a heating call, and verify a clean defrost cycle.

Signs You Need a Replacement

Outdoor coil ices over and never clears in heating mode
Unit stuck in continuous defrost or never enters defrost
Reversing valve or contactor not energizing on schedule
No 24V output to controlled components despite a valid call

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
