ICP Control Board Kit for WPG3604090RKC1 — Ignition Control Module | Ships Today

Name: ICP Control Board Kit for WPG3604090RKC1 — Ignition Control Module | Ships Today
Brand: ICP
SKU: 1178358
Price: 232.70 USD
Availability: InStock

SKU: 1178358 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

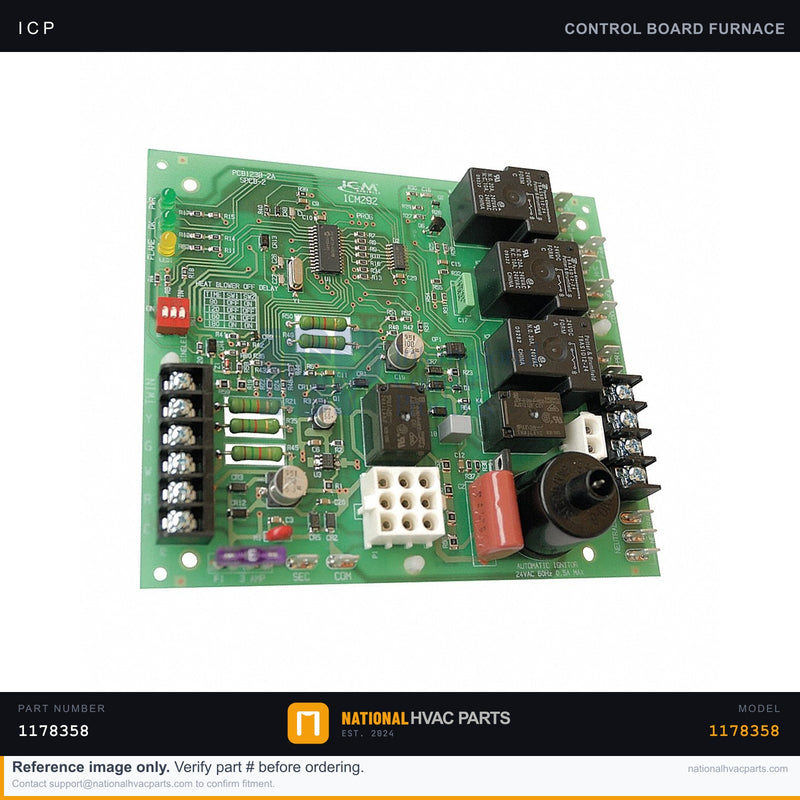

This genuine OEM control board kit for the ICP / Tempstar / Heil WPG3604090RKC1 packaged gas-electric unit includes the main circuit board (part 1178358) and the ignition control module (part 1177661). Together they are the brain of the unit: managing the heating sequence of operations, sequencing the inducer, hot surface igniter, and gas valve, monitoring the pressure switch and limit safeties, proving flame, and timing the blower on and off. The board also handles the 24V control logic and onboard diagnostics, flashing fault codes through an LED to speed troubleshooting. When the board or ignition module fails, symptoms range from no-heat lockouts and short cycling to a blower that won't run or a unit that ignores the thermostat entirely.

Specifications

Spec	Value
OEM Part Numbers	1178358 (Circuit Board), 1177661 (Ignition Control Module)
Type	Integrated Furnace / Ignition Control Board
Brand	ICP (Tempstar / Heil / Comfortmaker)
Line Voltage	120V
Control Voltage	24V
Features	Ignition Sequencing, Safety Monitoring, LED Diagnostics
Fitment	OEM Direct Replacement

Compatibility

Direct OEM replacement for the ICP / Tempstar / Heil WPG3604090RKC1 packaged gas-electric unit and compatible ICP-family equipment using circuit board 1178358 and ignition control module 1177661. Match the existing board part numbers and connector layout before ordering.

Installation Guide

Safety First — Disconnect power at the unit disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the control/electrical access panel.
Document — Photograph every connector and wire location on the board before disconnecting anything.
Remove — Unplug each harness, release the board standoffs/screws, and lift out the old board and module.
Install — Mount the new board and ignition module, then reconnect every harness exactly per your photo.
Test — Restore power, run a full heat and cool cycle, and confirm proper sequencing with no fault-code flashes.

Signs You Need a Replacement

No response to the thermostat — unit won't start heating or cooling.
Hard lockouts or fault-code LED indicating a control failure.
Blower, inducer, or igniter won't energize in proper sequence.
Visible burn marks, corrosion, or a failed relay on the board.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Control Board Kit for WPG360...

$232.70

Frequently Asked Questions

Does this Control Board fit my ICP WPG3604090RKC1 — Ignition Control Module | Ships Today?

Yes. This is the factory-specified OEM control board for the ICP WPG3604090RKC1 — Ignition Control Module | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my ICP WPG3604090RKC1 — Ignition Control Module | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
