ICP Control Board Kit for RHH036S0BA0AAAA — Heat Pump Defrost Board | Ships Today

Name: ICP Control Board Kit for RHH036S0BA0AAAA — Heat Pump Defrost Board | Ships Today
Brand: ICP
SKU: 1183618
Price: 214.50 USD
Availability: InStock

SKU: 1183618 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

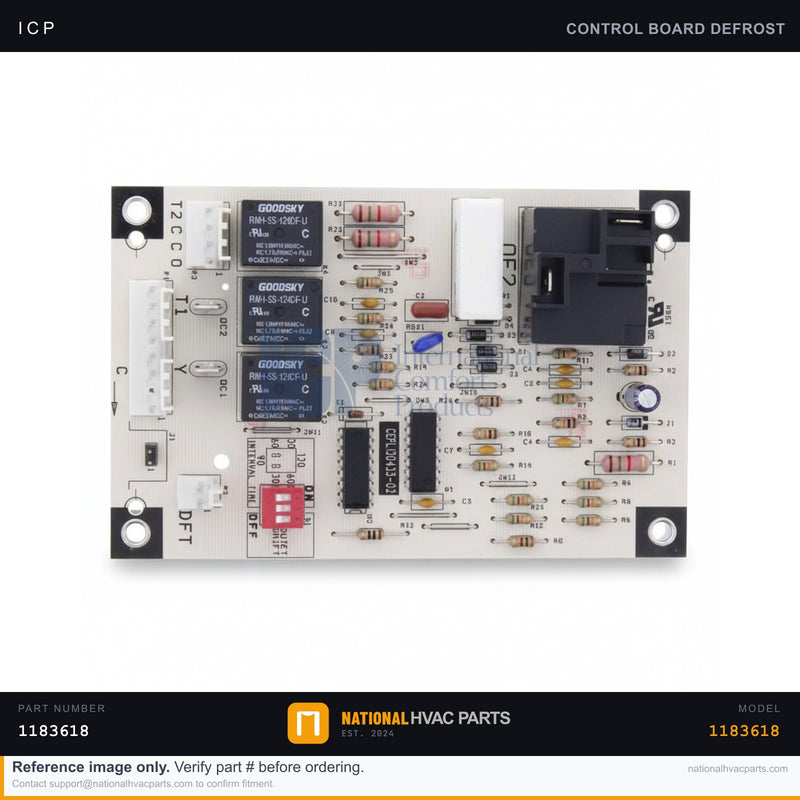

This genuine OEM control board kit (part number 1183618) is the electronic brain of the ICP/Tempstar/Heil RHH036S0BA0AAAA heat pump. The board manages the defrost cycle, compressor and fan sequencing, reversing-valve switching, and the 24-volt safety circuit. It reads the defrost thermostat and timer logic to decide when to reverse the system and melt frost off the outdoor coil, then returns the unit to normal operation. Because every cooling and heating call routes through this board, a failure usually shows up as a unit that will not run at all, a heat pump that ices over and never defrosts, or erratic compressor and fan behavior. Replacing the board with the correct OEM kit restores proper sequencing and protects the compressor from short-cycling.

Specifications

Spec	Value
Part Number	1183618
Type	Defrost / Control Board Kit
Brand	ICP / Tempstar / Heil
Control Voltage	24V
Function	Defrost, sequencing, reversing-valve control
Fits Model	RHH036S0BA0AAAA

Compatibility

Designed for the ICP/Tempstar/Heil RHH036S0BA0AAAA heat pump and the related ICP-family outdoor units that share this defrost control kit. Confirm the existing board's part number and connector layout before ordering, as control kits are model-specific.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the outdoor unit's electrical service panel to expose the control board.
Document — Photograph every wire harness, plug, and terminal position before disconnecting.
Remove — Unplug the connectors, release the board's mounting standoffs or screws, and lift it out.
Install — Seat the new board on the standoffs, reconnect each harness exactly per your photos, and verify the defrost sensor and reversing-valve leads are landed correctly.
Test — Restore power, run a cooling and a heating call, and confirm proper compressor, fan, and defrost operation.

Signs You Need a Replacement

Heat pump ices over and never initiates a defrost cycle.
Outdoor unit is completely dead with 24V present at the board.
Compressor or fan short-cycles or runs erratically.
Visible burnt traces, scorched relays, or a blown fuse on the board.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
