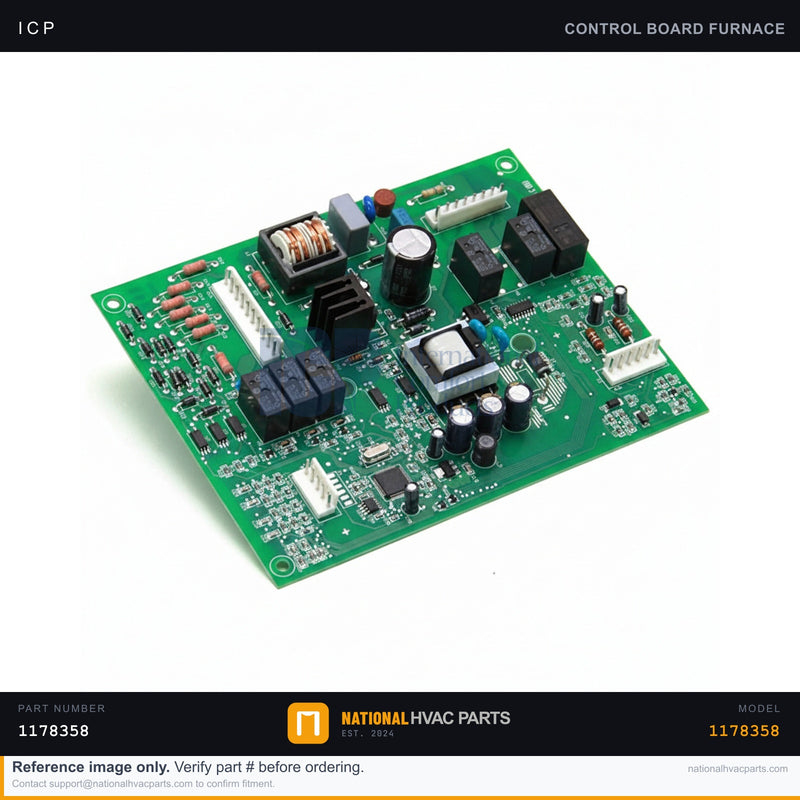

This OEM control board (part number 1178358) with its ignition control module (1177661) is the brain of the ICP Tempstar Heil WPG3424060RKC1 packaged unit. It sequences the entire heating cycle — proving the pressure switch, energizing the igniter, opening the gas valve, monitoring flame via the sensor, and timing the blower on/off delays. It also manages safety lockouts and flashes diagnostic fault codes. When the board fails, symptoms range from a completely dead furnace to no ignition, intermittent operation, erratic blower behavior, or repeated lockouts with no other failed component. Boards commonly fail from power surges, moisture, relay wear, or burned ignition-control traces.
Specifications
| Spec | Value |
|---|---|
| Part Numbers | 1178358 (board), 1177661 (ignition control module) |
| Type | Integrated Furnace / Ignition Control Board |
| Brand | ICP / Tempstar / Heil |
| Function | Ignition sequencing, safety lockout, blower timing, diagnostics |
| Fits Model | WPG3424060RKC1 |
| Fit | OEM Direct Replacement |
Compatibility
Direct-fit OEM replacement for the ICP Tempstar Heil WPG3424060RKC1. ICP-family units (Comfortmaker, Heil, Tempstar, Arcoaire) often share this control platform; confirm the printed board part number and connector layout against the original before installing.
Installation Guide
- Safety First — Disconnect power at the disconnect and breaker; verify zero voltage with a multimeter.
- Access — Remove the control/blower service panel.
- Document — Photograph every wire harness and connector position before unplugging anything.
- Remove — Unplug each labeled connector, then unscrew the board from its standoffs.
- Install — Mount the new board, reseat every connector firmly per your photo, and confirm no pins are bent.
- Test — Restore power and run a full heat cycle; verify ignition, flame proof, and blower timing, and check for fault codes.
Signs You Need a Replacement
- Furnace completely unresponsive with confirmed 24V control power present
- No igniter warm-up or gas valve never opens despite a valid heat call
- Intermittent operation, random resets, or erratic blower cycling
- Visible burn marks, corrosion, or scorched relays on the board
