What HP motor do I need for my ICP unit?

The correct replacement for ICP model WCH5424GKA200 — 1/5 HP 208/230V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WCH5424GKA200 — 1/5 HP 208/230V | Ships Today.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

ICP

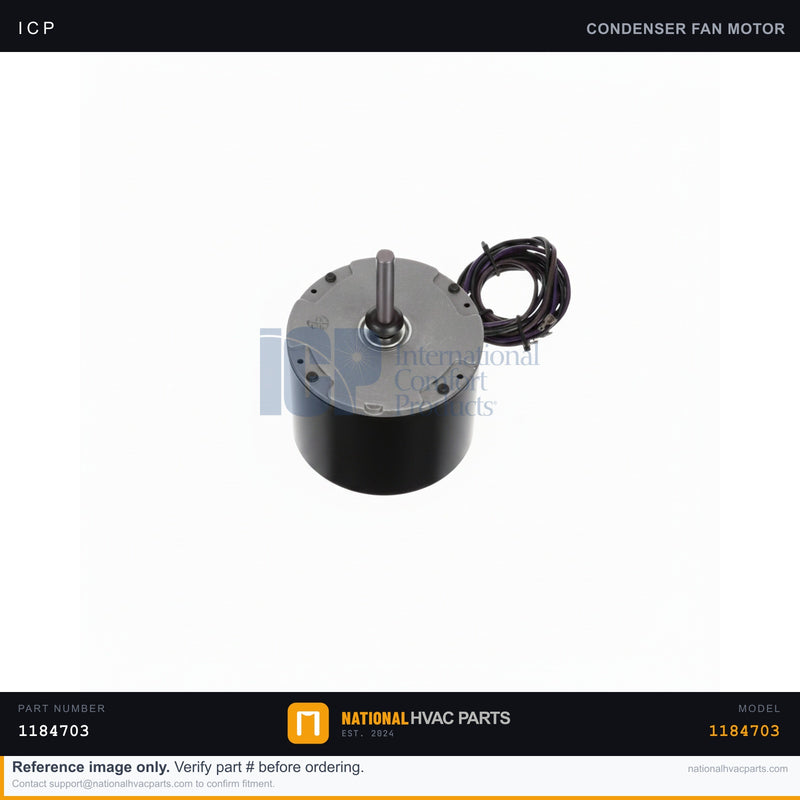

ICP Condenser Fan Motor for WCH5424GKA200 — 1/5 HP 208/230V | Ships Today

Name: ICP Condenser Fan Motor for WCH5424GKA200 — 1/5 HP 208/230V | Ships Today
Brand: ICP
SKU: 1184703
Price: 207.94 USD
Availability: InStock

SKU: 1184703 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is the OEM condenser fan motor (part number 1184703, "MTR CND 1/230 1/5 HP") for the ICP / Heil / Tempstar WCH5424GKA200 heat pump. The condenser fan motor drives the outdoor fan blade that pulls air across the outdoor coil, rejecting heat in cooling mode and absorbing heat in heating mode. Rated at 1/5 HP and 208/230V single-phase, it is sized specifically for this unit's airflow and head-pressure requirements. A failing condenser fan motor causes high head pressure, poor cooling or heating, compressor overheating, and eventual compressor failure — making it one of the most important parts to replace promptly.

Specifications

Spec	Value
Part Number	1184703
Type	Condenser Fan Motor
Brand	ICP / Heil / Tempstar
Horsepower	1/5 HP
Voltage	208/230V
Phase	Single-phase
Fitment	OEM replacement

Compatibility

Direct OEM replacement for the ICP/Heil/Tempstar WCH5424GKA200 condensing unit, and compatible across ICP-family units built on the same WCH5424 platform. Confirm horsepower, voltage, rotation, and shaft dimensions against your existing motor, and reuse a properly rated run capacitor.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and verify zero voltage with a multimeter; the run capacitor can hold a lethal charge, so discharge it before handling.
Access — Remove the fan grille / top panel to access the motor and fan blade.
Document — Photograph the wiring, capacitor connections, and fan blade position on the shaft.
Remove — Loosen the blade set screw, pull the blade, disconnect the leads, and unbolt the old motor from the bracket.
Install — Mount the new motor, reinstall the blade at the same depth, and reconnect leads to the capacitor and contactor per your photos.
Test — Restore power and confirm the fan spins freely in the correct direction at full speed.

Signs You Need a Replacement

Outdoor fan won't start, hums, or spins slowly
Motor runs hot, trips the breaker, or shuts down on thermal overload
High head pressure with poor cooling or heating performance
Grinding or squealing bearing noise from the outdoor unit

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Condenser Fan Motor for WCH5...

$207.94

Frequently Asked Questions

Does this Fan Motor fit my ICP WCH5424GKA200 — 1/5 HP 208/230V | Ships Today?

Yes. This is the factory-specified OEM fan motor for the ICP WCH5424GKA200 — 1/5 HP 208/230V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my ICP WCH5424GKA200 — 1/5 HP 208/230V | Ships Today?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
