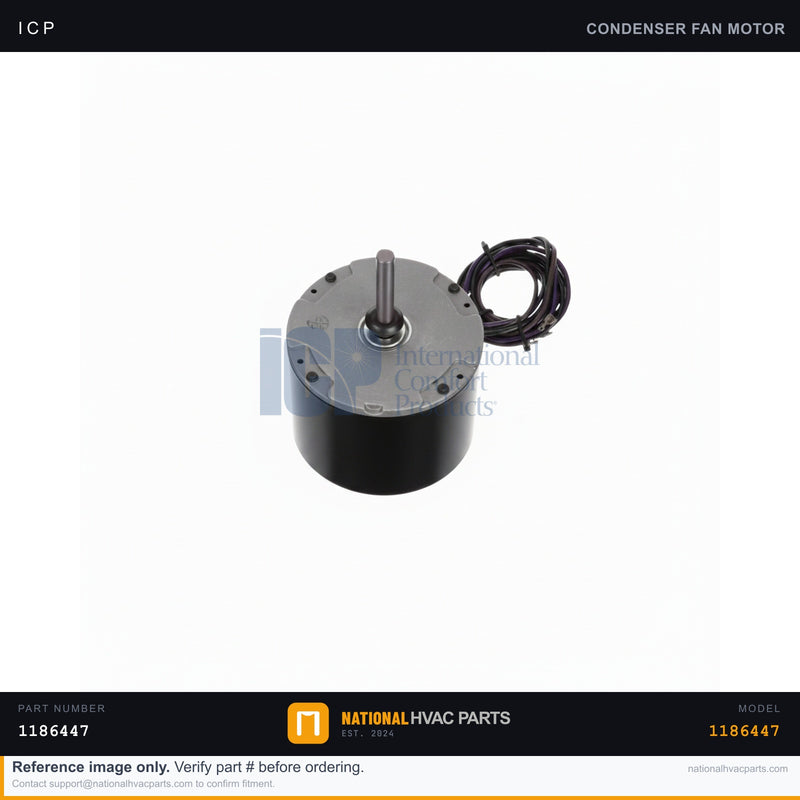

ICP Condenser Fan Motor for WCA3364GKF100 — 1/5 HP | Ships Today
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Overview
This OEM condenser fan motor (Part #1186447) drives the outdoor fan blade on the ICP WCA3364GKF100 air conditioning unit. Rated at 1/5 HP, it pulls ambient air across the condenser coil to reject heat from the refrigerant, which is essential for proper cooling capacity and to protect the compressor from overheating. A failing condenser motor causes high head pressure, weak cooling, compressor overheating and tripping on the high-pressure or thermal overload, and eventually a complete loss of cooling. Symptoms include a fan that won't spin, spins slowly, runs hot, makes grinding or squealing bearing noise, or only starts after a manual push.
Specifications
| Spec | Value |
|---|---|
| Part Number | 1186447 |
| Type | Condenser (Outdoor) Fan Motor |
| Brand | ICP (Tempstar / Heil / Comfortmaker) |
| Horsepower | 1/5 HP |
| Application | Condenser fan |
| Description | Motor CND 1/5 HP |
Compatibility
Direct OEM-fit replacement for the condenser fan motor in the ICP / Tempstar / Heil WCA3364GKF100 condensing unit. Compatible with other ICP-family residential condensers specifying a 1/5 HP outdoor fan motor. Confirm horsepower, rotation, shaft diameter, mounting, and the matching run capacitor MFD rating before installing.
Installation Guide
- Safety First — Disconnect power at the outdoor disconnect and breaker. Verify zero voltage with a multimeter, and discharge the run capacitor before handling any leads.
- Access — Remove the top fan grille/panel and lift the fan assembly out of the cabinet.
- Document — Photograph the motor wiring, capacitor connections, and the fan blade depth and orientation on the shaft.
- Remove — Loosen the blade set screw, pull the blade, unbolt the old motor from its bracket, and disconnect the leads.
- Install — Bolt the new motor in place, transfer the blade to the same depth and orientation, and reconnect the leads and capacitor per your photo.
- Test — Restore power and call for cooling. Verify the fan spins up to full speed in the correct direction (drawing air up through the top).
Signs You Need a Replacement
- Outdoor fan blade does not turn while the compressor runs.
- Grinding, squealing, or humming bearing noise from the fan motor.
- Motor runs hot, cuts out on thermal overload, then restarts when cool.
- Weak cooling with high head pressure caused by poor condenser airflow.
