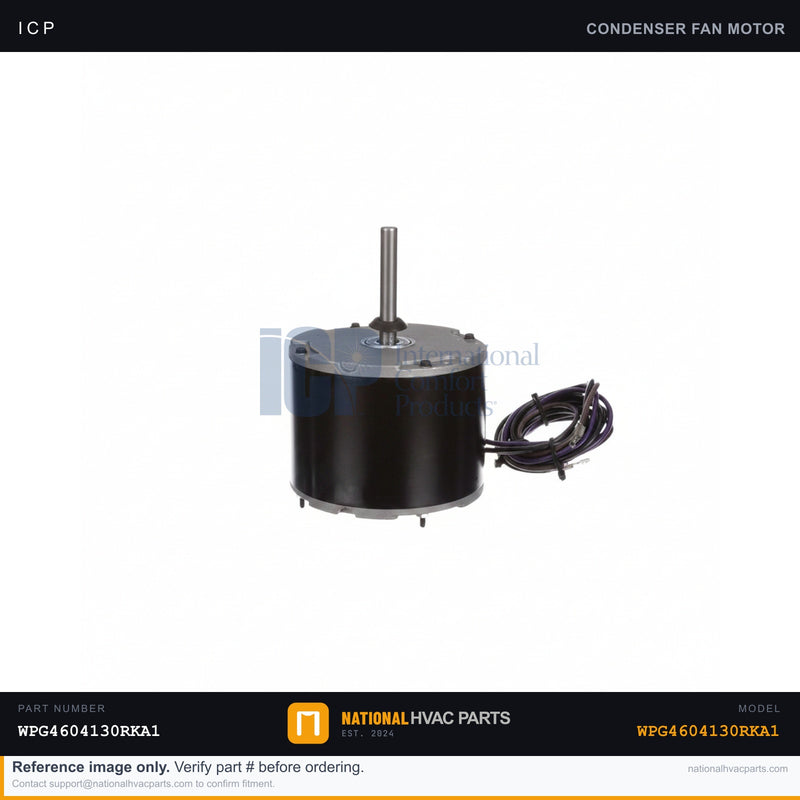

ICP Condenser Fan Motor 1/5 HP for WPG4604130RKA1 — 810 RPM | Ships Today

Overview

This OEM condenser fan motor (part 1186359, "Motor CND 1/5 HP 810") drives the outdoor fan blade on the ICP Tempstar/Heil WPG4604130RKA1 packaged unit. Rated at 1/5 HP and 810 RPM on 208/230V, it pulls air across the condenser coil to reject heat during cooling. When this motor fails, the compressor can overheat and trip on high head pressure, the unit short-cycles, or cooling capacity drops sharply. Typical failure signs are a fan that hums but won't spin, a motor that runs hot and cuts out on its thermal overload, noisy or seized bearings, or a fan that won't start without a hand-spin. This is the correct factory-spec replacement to restore proper airflow and protect the compressor.

Specifications

Compatibility

Built for the ICP/Tempstar/Heil WPG4604130RKA1 packaged gas/electric unit and related WPG-series systems using a 1/5 HP, 810 RPM condenser motor. Confirm horsepower, RPM, voltage, and rotation against your existing motor before installing.

Installation Guide

1. Safety First — Disconnect power and verify zero voltage with a multimeter; discharge the run capacitor.
2. Access — Remove the top/fan-grille service panel.
3. Document — Photograph all motor leads, capacitor wiring, and blade position on the shaft.
4. Remove — Mark and disconnect leads, loosen the blade set screw, pull the blade, and unbolt the motor from the bracket.
5. Install — Mount the new motor matching rotation, reinstall the blade at the same shaft depth, and wire to the capacitor per your photo.
6. Test — Restore power and confirm correct rotation, smooth operation, and proper amp draw.

Signs You Need a Replacement

• Outdoor fan hums but does not spin.
• Motor runs hot and shuts off on thermal overload.
• Loud, grinding, or seized bearings.
• High head pressure or compressor short-cycling from poor airflow.
