What HP motor do I need for my ICP unit?

The correct replacement for ICP model WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

ICP

ICP Blower & Condenser Fan Motor for WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today

Name: ICP Blower & Condenser Fan Motor for WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today
Brand: ICP
SKU: WPG4424060RKB1-GEN
Price: 189.00 USD
Availability: InStock

SKU: WPG4424060RKB1-GEN Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

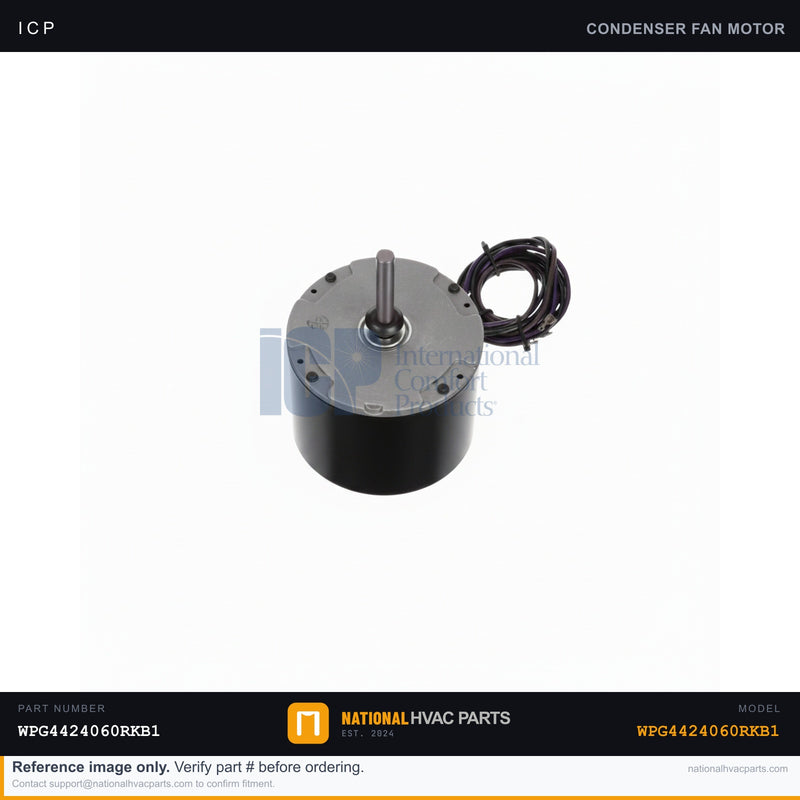

This OEM fan motor assembly fits the ICP/Tempstar/Heil WPG4424060RKB1 packaged unit. It covers the 1/2 HP blower motor (OEM 1188130) that drives indoor airflow across the heat exchanger and evaporator coil, and the 1/5 HP condenser fan motor (OEM 1186359) that pulls air across the outdoor condenser coil to reject heat. A failing blower motor causes weak airflow, overheating limit trips, or no air at the registers; a failing condenser motor causes high head pressure, warm air, compressor overheating, and eventual hard-lockouts. Both are sleeve/ball-bearing PSC motors matched to the factory CFM and static pressure of this cabinet.

Specifications

Spec	Value
Blower Part Number	1188130
Condenser Part Number	1186359
Blower Rating	1/2 HP
Condenser Rating	1/5 HP
Type	PSC Blower / Condenser Fan Motor
Brand	ICP (Tempstar / Heil)
Voltage	115V

Compatibility

Engineered for the ICP WPG4424060RKB1 packaged gas/electric and related WPG-series units sold under the ICP, Tempstar, Heil, and Comfortmaker family of brands. Always confirm HP, frame, rotation, and shaft diameter against the failed motor before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, verify zero voltage with a multimeter.
Access — Remove the blower or condenser service panel.
Document — Photograph all wire connections and capacitor leads before disconnecting.
Remove — Unbolt the motor from the blower housing or condenser bracket, slide the wheel/blade off the shaft, and transfer it to the new motor with matching set-screw position.
Install — Mount the new motor, set the blade/wheel depth, and reconnect leads and run capacitor per your photo.
Test — Restore power and verify smooth rotation, correct airflow direction, and normal amp draw.

Signs You Need a Replacement

Motor hums but won't start, or spins slowly by hand
Overheating, burning smell, or thermal cutout cycling
Loud bearing noise, grinding, or wobble
Weak airflow indoors or warm air with high head pressure outdoors

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Blower & Condenser Fan Motor...

$189.00

Frequently Asked Questions

Does this Fan Motor fit my ICP WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today?

Yes. This is the factory-specified OEM fan motor for the ICP WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my ICP WPG4424060RKB1 — 1/2 HP / 1/5 HP | Ships Today?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
