Overview

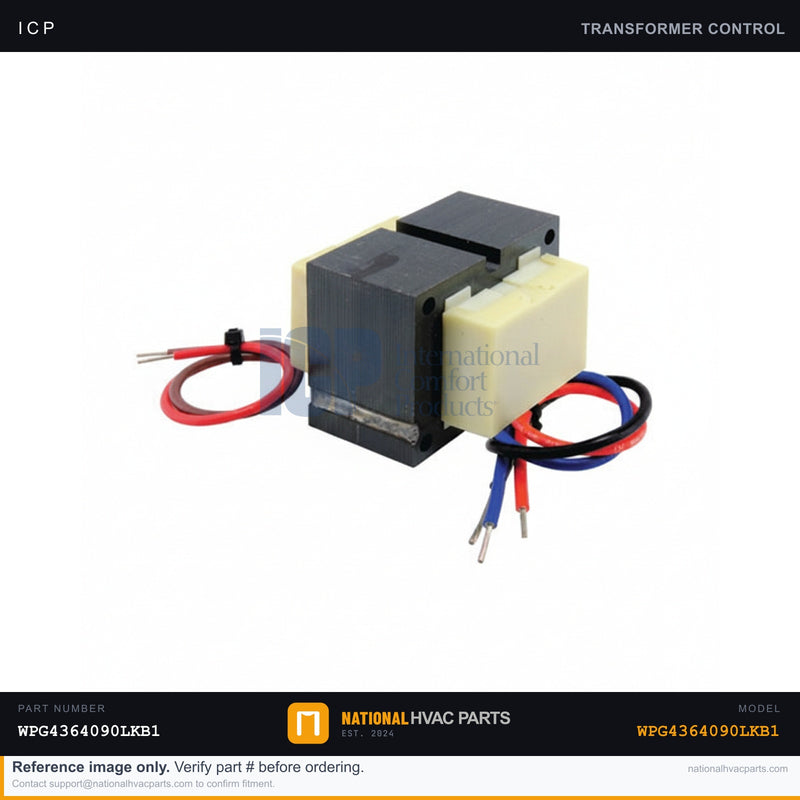

This OEM transformer kit fits the ICP / Tempstar / Heil WPG4364090LKB1 packaged unit and includes the 40VA step-down transformer (part number 1173691) and its 24V barrier (part number 1178431). The transformer steps line voltage of 208/230V down to the 24V control voltage that powers the thermostat, gas valve, contactor coil, control board, and safety circuit. A failed transformer is one of the most common no-power / no-response failures: when it opens or shorts, the entire low-voltage control system goes dead and the unit will not respond to a call for heat or cool. The included barrier provides the required separation between line and low-voltage wiring.
Specifications
| Spec | Value |
|---|---|
| OEM Part Numbers | 1173691 (transformer), 1178431 (24V barrier) |
| Type | Step-Down Control Transformer |
| Brand | ICP |
| Rating | 40VA |
| Primary Voltage | 208/230V |
| Secondary Voltage | 24V |
| Application | Furnace / Packaged Unit Control Circuit |
Compatibility
Built as the factory control transformer for the ICP WPG4364090LKB1 and equivalent Tempstar, Heil, and Comfortmaker packaged units on this platform. Confirm primary tap voltage, VA rating, and secondary voltage against your existing transformer before wiring.
Installation Guide
- Safety First — Disconnect power at the unit and breaker, then verify zero voltage with a multimeter at the transformer primary leads.
- Access — Remove the control / blower panel to reach the transformer and barrier on the control deck.
- Document — Photograph the primary tap (208 vs 230), secondary leads, and barrier placement before disconnecting.
- Remove — Label and disconnect all leads, then unbolt the failed transformer and old barrier from the panel.
- Install — Mount the new transformer and barrier, land the correct primary tap for your supply voltage, and reconnect the 24V secondary per your photo.
- Test — Restore power and confirm a steady 24-28V across the secondary and normal control response.
