What amp contactor do I need for my ICP system?

The correct replacement for ICP model YA100NA1 — 24V Coil | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number YA100NA1 — 24V Coil | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

ICP

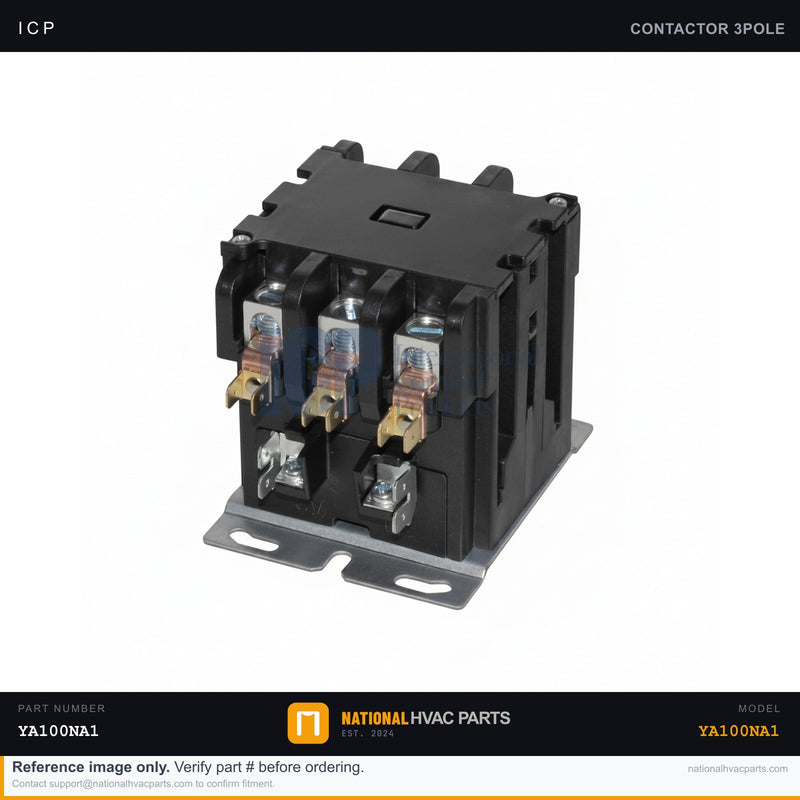

ICP 3-Pole 30A Contactor for YA100NA1 — 24V Coil | Ships Today

Name: ICP 3-Pole 30A Contactor for YA100NA1 — 24V Coil | Ships Today
Brand: ICP
SKU: YA100NA1
Price: 42.84 USD
Availability: InStock

SKU: YA100NA1 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM definite purpose contactor is the primary switching relay for the ICP YA100NA1 outdoor unit. The 3-pole, 30-amp configuration (part numbers 1070823 and 607339) switches all line legs to the compressor and condenser fan, while the 1-pole 25-amp option (part number 1050699) serves single-line applications. All use a 24-volt control coil that pulls the contacts closed on a cooling or heating call. As contacts arc on every cycle, they pit and eventually weld or fail open. Typical symptoms are a unit that hums but won't start, intermittent cooling, chattering, or a compressor that keeps running after the call ends.

Specifications

Spec	Value
Part Numbers	1070823, 607339 (3P 30A); 1050699 (1P 25A)
Type	Definite Purpose Contactor
Brand	ICP / Heil / Tempstar
Poles	3-Pole (also 1-Pole option)
Current Rating	30 Amps (25A on 1-pole)
Coil Voltage	24V

Compatibility

Direct OEM replacement for the ICP / Heil / Tempstar YA100NA1 and compatible units using the 1070823, 607339, or 1050699 contactor. Match the pole count and amperage of your existing contactor before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the outdoor unit's electrical service panel.
Document — Photograph all line, load, and 24V coil wiring before disconnecting.
Remove — Label and disconnect each wire, unscrew the contactor, and lift it from the bracket.
Install — Mount the new contactor and reconnect line, load, and coil leads exactly per your photo.
Test — Restore power and confirm the contacts pull in and the compressor and fan energize on a call.

Signs You Need a Replacement

Unit hums but the compressor won't start
Pitted, burned, or welded contacts
Chattering or intermittent operation
Compressor keeps running after the thermostat is satisfied

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP 3-Pole 30A Contactor for YA1...

$42.84

Frequently Asked Questions

Does this Contactor fit my ICP YA100NA1 — 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the ICP YA100NA1 — 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my ICP YA100NA1 — 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
