What amp contactor do I need for my ICP system?

The correct replacement for ICP model SUP20M2301CIA — Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number SUP20M2301CIA — Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

ICP

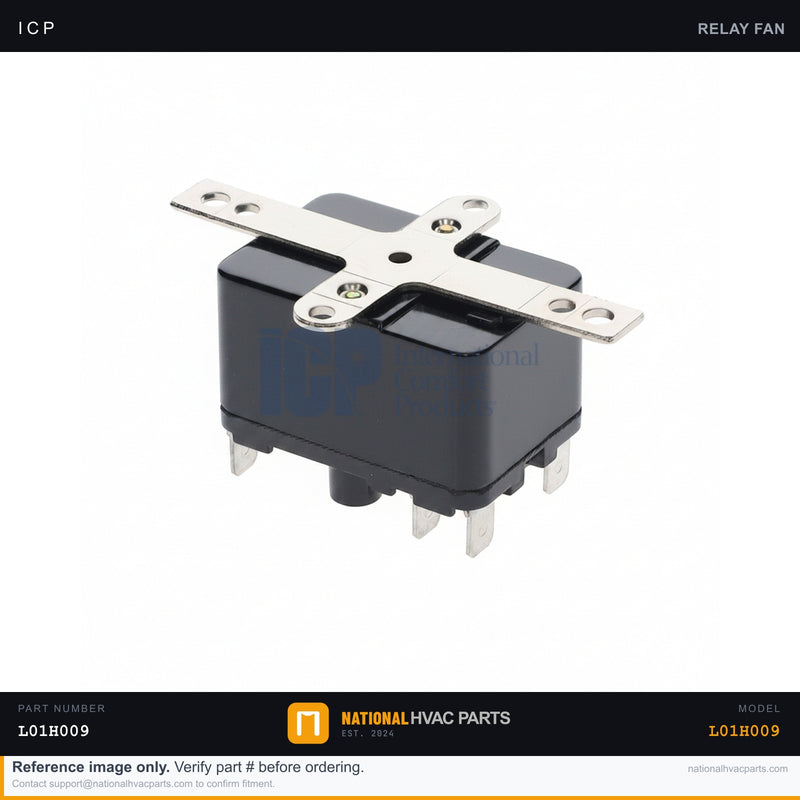

ICP 24VAC Relay for SUP20M2301CIA — Ships Today

Name: ICP 24VAC Relay for SUP20M2301CIA — Ships Today
Brand: ICP
SKU: L01H009
Price: 37.64 USD
Availability: InStock

SKU: L01H009 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 24VAC relay (part number L01H009, OEM ref AG90-23242-024W) is a low-voltage switching relay used in the control circuit of the ICP/Heil/Tempstar SUP20M2301CIA package unit. A 24-volt coil energizes the relay contacts to switch a load — a fan, heater, or auxiliary circuit — on command from the control board or thermostat. When the relay fails, the controlled load stops responding: a fan that won't start, a stage that won't energize, or intermittent operation as worn contacts arc. Relays fail from contact pitting, a burned-open coil, or vibration over years of cycling.

Specifications

Spec	Value
Part Number	L01H009
OEM Reference	AG90-23242-024W
Type	Switching Relay
Brand	ICP (Heil / Tempstar / Comfortmaker)
Coil Voltage	24 VAC
Fit	OEM Direct Replacement

Compatibility

Direct OEM fit for the ICP SUP20M2301CIA and shared-platform ICP/Heil/Tempstar/Comfortmaker units using the L01H009 / AG90-23242-024W relay. Confirm coil voltage (24VAC) and contact configuration against the failed relay before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the control-panel service panel.
Document — Photograph all coil and contact wiring before disconnecting.
Remove — Label and disconnect the leads, then unclip or unscrew the relay from its mount.
Install — Mount the new relay and reconnect each lead exactly per your photo.
Test — Restore power, confirm the coil pulls in on a control call, and verify the switched load operates.

Signs You Need a Replacement

Controlled fan or stage will not energize on a call.
Audible chattering or buzzing from the relay.
Intermittent operation or contacts that stick closed.
Visible burning, pitting, or melted housing at the relay.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP 24VAC Relay for SUP20M2301CI...

$37.64

Frequently Asked Questions

Does this Contactor fit my ICP SUP20M2301CIA — Ships Today?

Yes. This is the factory-specified OEM contactor for the ICP SUP20M2301CIA — Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my ICP SUP20M2301CIA — Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
