ICP 2-Pole 40A Contactor for ZAEB025CHA1 — 24V Coil | Ships Today

Overview

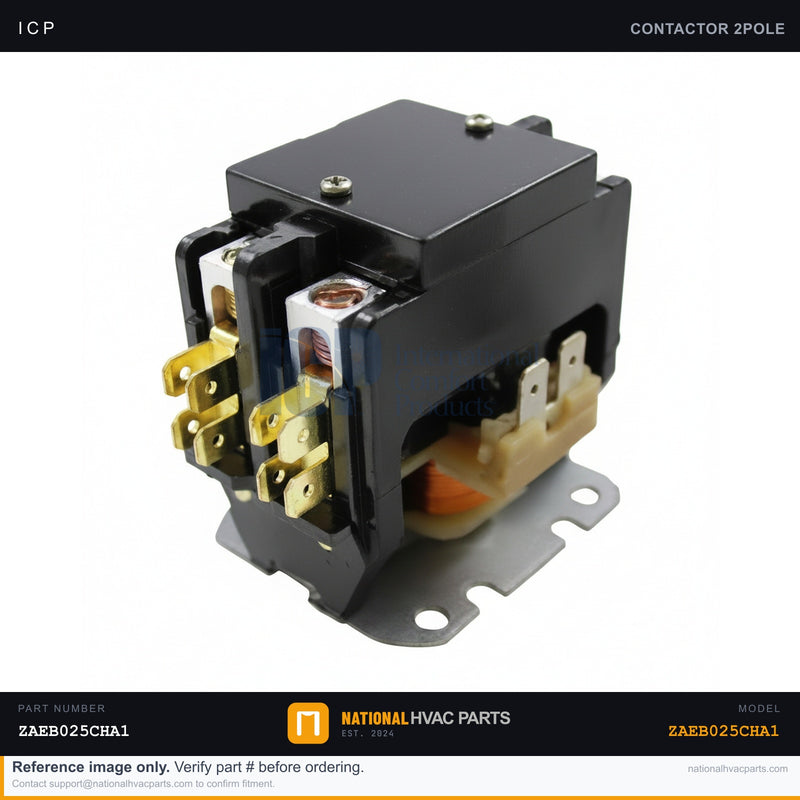

This genuine OEM 2-pole, 40-amp definite-purpose contactor (part #1066570) is the electrical switch that energizes the compressor and condenser fan in your ICP ZAEB025CHA1 system. A 24-volt coil pulls the contacts closed when the thermostat calls, passing line voltage to the high-amperage loads. Over time the contacts pit, burn, and weld from constant arcing. A failing contactor causes hard starts, chattering, a compressor that won't engage, or — when welded shut — an outdoor unit that never shuts off. Pitted or burnt contacts and a coil that won't pull in are the classic failure signs.

Specifications

Compatibility

Direct-fit replacement for the ICP ZAEB025CHA1 and equivalent condensing units across the ICP family — Tempstar, Heil, and Comfortmaker — that use a 2-pole 40A 24V-coil contactor.

Installation Guide

1. Safety First — Disconnect power and verify zero voltage at the contactor terminals with a multimeter.
2. Access — Remove the condensing unit's electrical service panel.
3. Document — Photograph every line, load, and coil wire before disconnecting.
4. Remove — Transfer wires one at a time, or label all leads, then unscrew the old contactor from its bracket.
5. Install — Mount the new contactor and reconnect each wire to the matching terminal per your photo.
6. Test — Restore power, call for cooling, and confirm the contacts pull in and the compressor and fan run.

Signs You Need a Replacement

• Burnt, pitted, or welded contacts.
• Chattering or buzzing when the unit calls for cooling.
• Compressor and fan fail to start.
• Outdoor unit runs continuously and won't shut off.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
