What amp contactor do I need for my ICP system?

The correct replacement for ICP model YK042G2 — 24V Coil | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number YK042G2 — 24V Coil | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

ICP

ICP 1-Pole 25A Contactor for YK042G2 — 24V Coil | Ships Today

Name: ICP 1-Pole 25A Contactor for YK042G2 — 24V Coil | Ships Today
Brand: ICP
SKU: 1050699
Price: 37.64 USD
Availability: InStock

SKU: 1050699 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

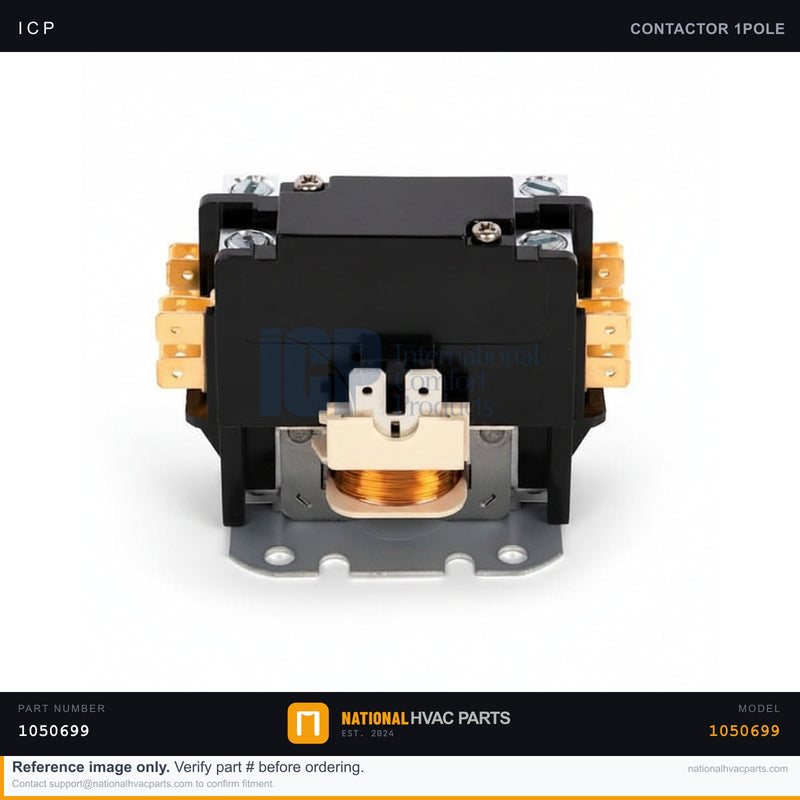

This is the genuine OEM 1-pole, 25-amp contactor with a 24-volt coil (part number 1050699) for the ICP / Tempstar / Heil YK042G2 heat pump. The contactor is the electrical switch that sends line-voltage power to the compressor and condenser fan motor whenever the 24V thermostat circuit calls for cooling or heating. Its contacts open and close thousands of times per season, so they eventually pit, burn, or weld together. A bad contactor causes some of the most frequent no-cool / no-heat service calls: the outdoor unit hums but won't start, buzzes loudly, chatters, or runs continuously because the contacts stay closed. Replacing this inexpensive part restores clean, reliable switching.

Specifications

Spec	Value
Part Number	1050699
Type	Definite Purpose Contactor
Brand	ICP / Tempstar / Heil
Poles	1-Pole
Contact Rating	25 Amps
Coil Voltage	24V
Fit	OEM replacement

Compatibility

Built for the ICP / Tempstar / Heil YK042G2 heat pump condenser and other units that use a 1-pole, 25A contactor with a 24V coil. Confirm pole count, amp rating, and coil voltage against your original before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage across the contactor terminals with a multimeter.
Access — Remove the condenser service panel.
Document — Photograph every line, load, and 24V coil wire before disconnecting.
Remove — Transfer wires one at a time, then unbolt the old contactor from its bracket.
Install — Mount the new contactor and reconnect each wire to the matching terminal per your photo.
Test — Restore power, call for cooling, and confirm the contactor pulls in and the unit starts cleanly.

Signs You Need a Replacement

Outdoor unit hums or buzzes but won't start
Loud chattering or clicking at the contactor
Burned, pitted, or welded contacts
Compressor runs nonstop because contacts won't open

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP 1-Pole 25A Contactor for YK0...

$37.64

Frequently Asked Questions

Does this Contactor fit my ICP YK042G2 — 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the ICP YK042G2 — 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my ICP YK042G2 — 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
