What amp contactor do I need for my ICP system?

The correct replacement for ICP model YL042GA1 — OEM 1050699 | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number YL042GA1 — OEM 1050699 | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

ICP

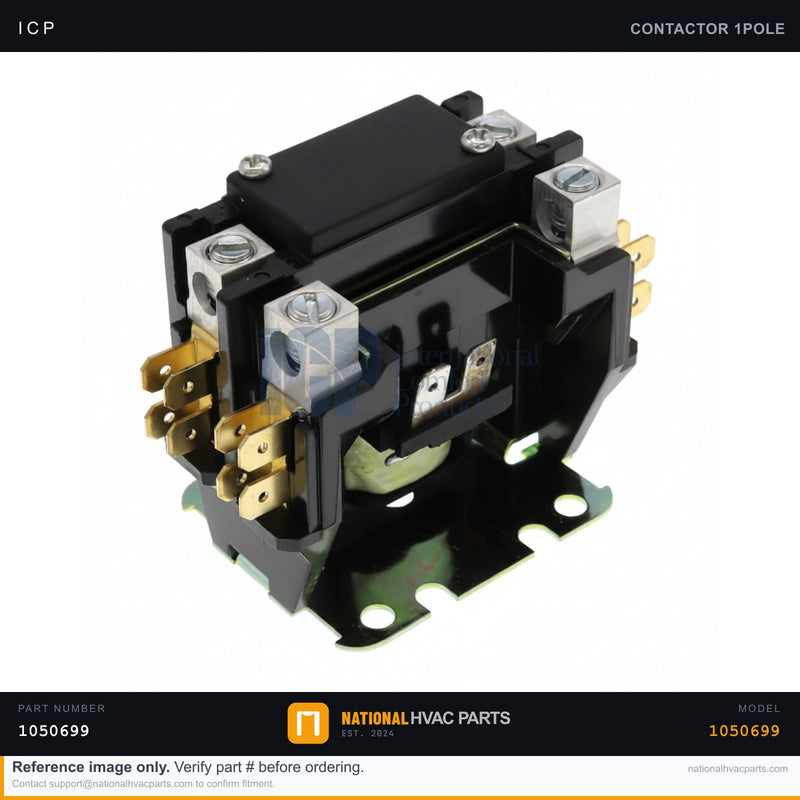

ICP 1-Pole 25A 24V Contactor for YL042GA1 — OEM 1050699 | Ships Today

Name: ICP 1-Pole 25A 24V Contactor for YL042GA1 — OEM 1050699 | Ships Today
Brand: ICP
SKU: 1050699
Price: 31.20 USD
Availability: InStock

SKU: 1050699 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM single-pole contactor (part number 1050699) is rated 25 amps with a 24-volt coil and serves as the main switching relay for the ICP / Tempstar / Heil YL042GA1 condensing unit. When the thermostat calls for cooling, the 24V coil pulls the contacts closed to energize the compressor and condenser fan motor. Over time the silver contacts pit, arc, and weld; a failing contactor causes hard starting, chattering, a unit that won't shut off, or a compressor that won't start at all. Replacing a worn contactor is one of the most common and inexpensive condenser-unit repairs.

Specifications

Spec	Value
Part Number	1050699
Type	Definite Purpose Contactor
Brand	ICP / Tempstar / Heil
Poles	1 (Single-Pole)
Contact Rating	25A
Coil Voltage	24V
Fits Model	YL042GA1
Fitment	OEM Replacement

Compatibility

Fits the ICP-family YL042GA1 and other ICP, Tempstar, Heil, and Comfortmaker condensing units that use a 1-pole, 25A, 24V coil contactor (part 1050699). Confirm pole count, amp rating, and 24V coil before ordering.

Installation Guide

Safety First — Disconnect power and verify zero voltage with a multimeter at the contactor line terminals.
Access — Remove the condenser electrical access panel.
Document — Photograph all line, load, and 24V coil wires before disconnecting.
Remove — Label and disconnect each wire, unscrew the mounting screws, and lift out the old contactor.
Install — Mount the new contactor and reconnect each wire exactly per your photo.
Test — Restore power and confirm the contacts pull in on a cooling call and the compressor/fan energize.

Signs You Need a Replacement

Buzzing, humming, or chattering from the contactor
Burned, pitted, or welded contacts
Compressor won't start or won't shut off
Visible arcing or melted housing

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP 1-Pole 25A 24V Contactor for...

$31.20

Frequently Asked Questions

Does this Contactor fit my ICP YL042GA1 — OEM 1050699 | Ships Today?

Yes. This is the factory-specified OEM contactor for the ICP YL042GA1 — OEM 1050699 | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my ICP YL042GA1 — OEM 1050699 | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
