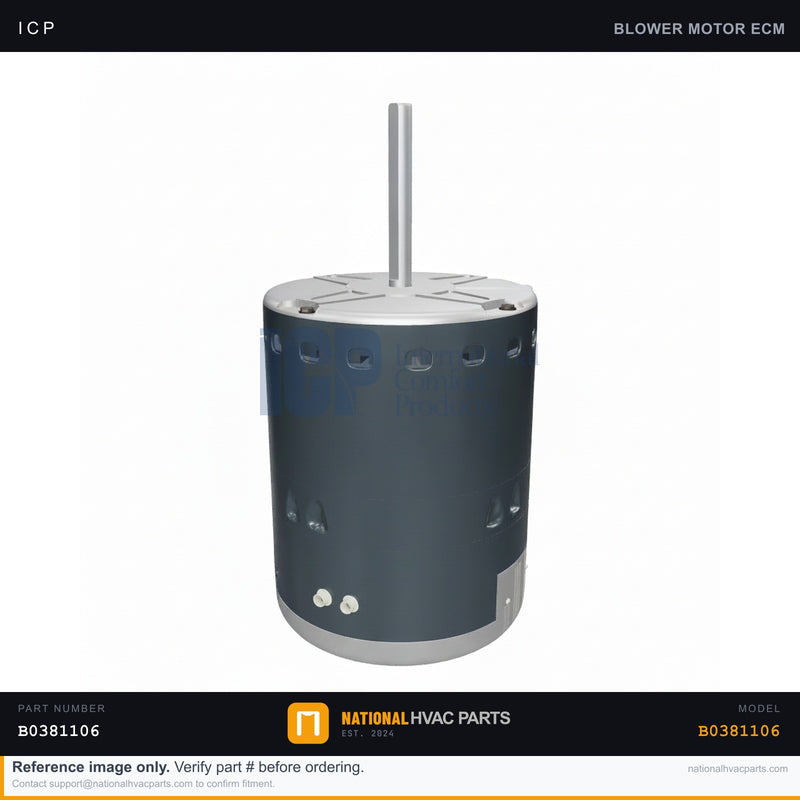

ICP 1/2 HP ECM Blower Motor for SUP18E230V1IA — B0381106 | Ships Today

Overview

This is the genuine ICP/Tempstar/Heil 1/2 HP ECM motor (OEM part B0381106) for the SUP18E230V1IA. ECM (electronically commutated motor) technology delivers variable, programmable speed control for quieter operation, steadier airflow, and significantly higher efficiency than a standard PSC motor. The motor drives the system's blower to move conditioned air across the coil and through the ductwork. A failing ECM motor may run hot, surge or hunt for speed, stop and restart, throw module faults, or quit entirely — leaving you with weak airflow or no airflow at all. Installing the correct 1/2 HP OEM ECM motor restores factory-rated CFM and efficiency.

Specifications

Compatibility

Designed as a direct OEM-fit replacement for the ICP SUP18E230V1IA and other Tempstar/Heil/Comfortmaker air handlers and furnaces built around this 1/2 HP ECM blower platform. Confirm the part number and motor module programming match your original before ordering.

Installation Guide

1. Safety First — Disconnect power and verify zero voltage with a multimeter.
2. Access — Remove the blower compartment panel and slide out the blower assembly.
3. Document — Photograph the motor harness, module connections, and blower wheel position.
4. Remove — Disconnect the harness, loosen the wheel set screw, and unbolt the old motor from the housing.
5. Install — Mount the new ECM motor, reseat the blower wheel at the same depth, and reconnect the module harness per your photos.
6. Test — Restore power and verify the motor ramps smoothly to commanded speed with proper airflow.

Signs You Need a Replacement

• Weak airflow or no airflow from the registers.
• Motor surges, hunts for speed, or cycles on and off.
• Overheating, burning smell, or audible bearing noise.
• ECM module fault codes or a completely dead blower.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
