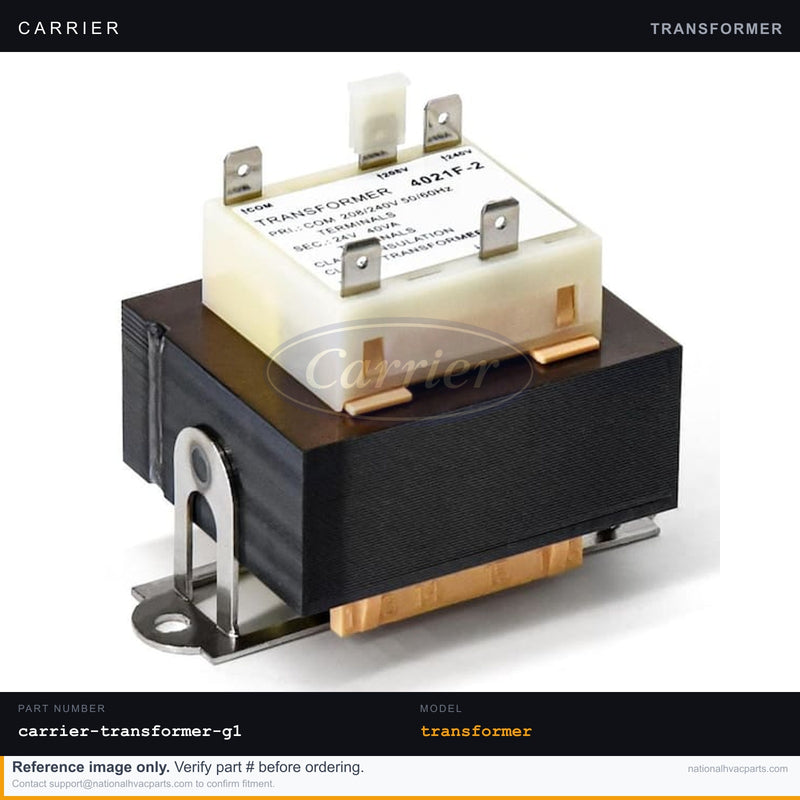

OEM Carrier 24V Transformer for Furnace Model G1RS100A16 Ships Today
Carrier

OEM Carrier 24V Transformer for Furnace Model G1RS100A16 Ships Today

SKU: carrier-transformer-g1rs100a16 Brand: Carrier
$34.95

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

OEM Carrier 24V Transformer for Furnace Model G1RS100A16 Ships Today

This OEM Carrier transformer steps line voltage down to the 24-volt control power that runs the thermostat, control board, gas valve, and relays in the G1RS100A16 furnace. When the transformer fails, the furnace goes completely unresponsive: a blank thermostat, no ignition sequence, and no clicking relays even though the unit has power. A blown transformer is often caused by a control short, so inspect low-voltage wiring before installing the replacement. This transformer matches the exact primary and secondary voltage and VA rating specified for the G1RS100A16 for a direct-fit swap. Installation is moderate: cut power, label and transfer the primary and secondary leads to the identically marked terminals, and remount with the supplied screws. Using the OEM transformer ensures correct VA capacity so the control circuit stays stable under load. We keep genuine Carrier transformers in stock and ship same-day on orders placed before 3PM CST to get your heat and controls back online quickly. Confirm the VA and voltage stamp matches your original.

Compatibility

This part is compatible with Carrier model G1RS100A16.

Shipping

Same-day shipping before 3 PM CST. 30-day returns on uninstalled parts.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email support@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Transformer fit my Carrier Furnace Model G1RS100A16 Ships Today?
Yes. This is the factory-specified OEM transformer for the Carrier Furnace Model G1RS100A16 Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the transformer on my Carrier Furnace Model G1RS100A16 Ships Today?
Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Photo wiring connections. Step 3: Disconnect wires from old transformer. Step 4: Remove mounting hardware. Step 5: Install new transformer, reconnect wires matching voltage ratings. Step 6: Verify 24V output with multimeter.
My thermostat has no power. What failed?
Thermostat with no display = failed 24V transformer (or blown control board fuse). Check the 3A/5A fuse on the control board first ($1–$5 fix). If fuse is good but no 24V output from transformer, replace transformer.
Is this transformer compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier transformer?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
